High Efficiency Concentrator
Applied Materials:
Copper ore, pyrrhotite, hematite, limonite, gold ore, iron ore, etc.
Applications:
Cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.
If you want to learn more about our beneficiation equipment, Leave a Message!
Introduction of High Efficiency Concentrator
The concentrator produced by our company is suitable for the demineralization of concentrates and tailings in the concentrator, and the 20-30% slurry is raised to 40-70%. The concentrator is widely used in metallurgy, chemical, coal, non-metal ore dressing. Environmental protection and other industries. The concentrator is divided into a central transmission concentrator, a peripheral transmission concentrator, a high efficiency concentrator, a sludge concentrator, a batch concentrator, a vertical flow and a radial flow continuous concentrator. The high-efficiency concentrator is not simply a settling device, but a new type of dewatering device that combines the filtration characteristics of the mud layer.
Advantages of Fodamon Thickener
1. The structure is novel and the application industry is many. The concentrator is a new type of dewatering equipment combined with the filtration characteristics of the mud layer. It is suitable for the demineralization of concentrates and tailings in the concentrator. It is widely used in metallurgy, chemical, coal, non-metal ore dressing, environmental protection and other industries.
2. The sedimentation speed is fast and the work efficiency is high. A certain amount of flocculating agent is added to the slurry to be concentrated, so that the ore particles in the slurry form floccules, and the sedimentation speed is accelerated, thereby achieving the purpose of improving the concentration efficiency. The installation of the inclined plate shortens the settlement distance of the ore particles, increases the settlement area, and has high work efficiency.
3. The configuration of a complete self-control facility has a strong processing capacity. The new concentrator is equipped with a complete self-control facility, which increases the particle size of the settled solid particles and accelerates the sedimentation speed of the solid particles; it is equipped with a sloping plate that can shorten the sedimentation distance of the mineral and increase the settlement area, thereby improving the processing capacity of the equipment.
4. With a variety of operating functions, efficient and convenient. The concentrator is a continuous operation of concentrated and clarified multi-function functional equipment. It is mainly used for concentration and clarification of concentrate and tailings slurry and clean coal and tailings slurry in wet beneficiation and coal preparation operations. In the process of work, it is efficient and convenient, energy saving and environmental protection.
Working Principle

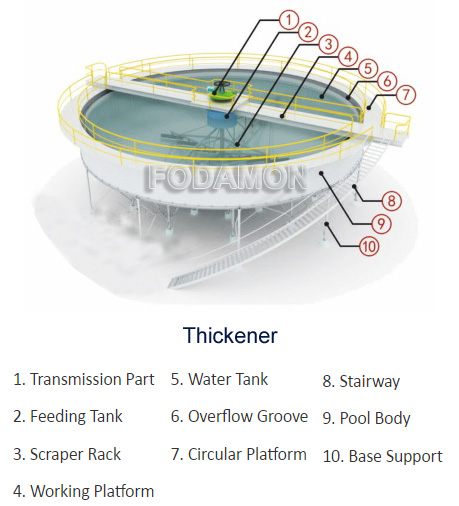

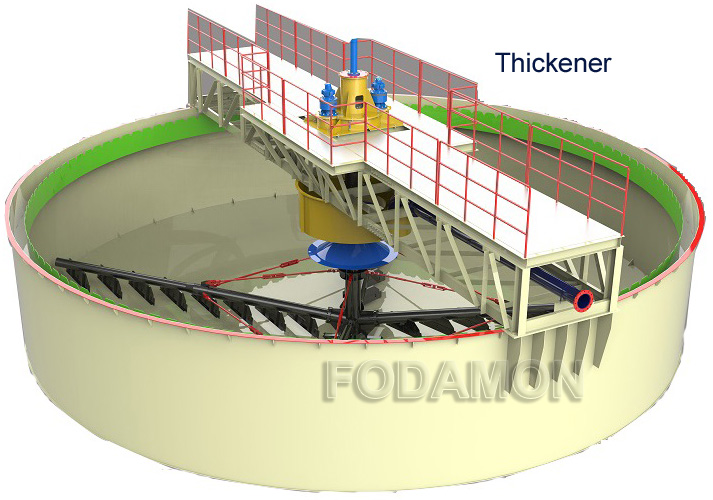

The concentrator is mainly composed of a circular concentrating tank and a squeegee scraper. The solid particles suspended in the slurry in the concentration tank settle under gravity, and the upper part becomes clear water, so that the solid liquid can be separated. The slime deposited on the bottom of the concentrating tank is continuously scraped by the squeegee scraper to the center discharge port of the bottom of the tank, while the clarified water overflows from the upper edge of the concentrating tank.
If you want to learn more about our beneficiation equipment, Leave a Message!
If you want to learn more about our beneficiation equipment, Leave a Message!
Technical Data
|
Specification |
Concentration pond （m） |
Deposit square(m2) |
Harrow part |
Motor |
Processing capacity (t/d) |
Total weight（t） |
|||||
|
Model |
Specification |
Inner diameter |
Depth |
Pond degree |
Method |
Height（m） |
Rotation time（min/r） |
Driving |
Lifting |
||
|
NZS-1 |
Φ1.8m |
1.8 |
1.8 |
2.54 |
Manual |
0.16 |
2 |
Y90L-6 1.1KW |
—- |
5.6 |
1.9 |
|
NZS-3 |
Φ3.6m |
3.6 |
1.8 |
10.2 |
Manual |
0.35 |
2.5 |
Y90L-6 1.1KW |
—- |
22.4 |
4.3 |
|
NZS-6 |
Φ6m |
6 |
3 |
28.3 |
Manual |
0.2 |
3.7 |
Y90S-4 1.1KW |
—- |
62 |
10.7 |
|
NZSF-6 |
Φ6m |
6 |
3 |
28.3 |
Manual |
—- |
3.7 |
Y90S-4 1.1KW |
—- |
62 |
5.1 |
|
NZ-9 |
Φ9m |
9 |
3 |
63.6 |
Auto |
0.25 |
4.34 |
Y132S-6 3KW |
XWD0.8-3 0.8KW |
140 |
8.5 |
|
NZS-9 |
Φ9m |
9 |
3 |
63.6 |
Manual |
0.25 |
4.34 |
Y132S-6 3KW |
—- |
140 |
7.5 |
|
NZS-12 |
Φ12m |
12 |
3.5 |
113 |
Manual |
0.25 |
5.28 |
JTC752A-44 5.2KW |
—- |
250 |
11.1 |
|
NZ-15 |
Φ15m |
15 |
4.4 |
176 |
Auto |
0.4 |
10.4 |
JTC752A-44 5.2KW |
Y112M-6 2.2KW |
350 |
26.0 |
|
NZ-20 |
Φ20m |
20 |
4.4 |
314 |
Auto |
0.4 |
10.4 |
Y100L1-4 5.2KW |
Y112M-6 2.2KW |
960 |
28.9 |
|
NZ-30 |
Φ30m |
30 |
7.165 |
707 |
—- |
0.61 |
13.7 |
JTC672A-44 5.2KW |
YCJ132-S 1.5KW |
—- |
36.6 |
|
NZS-45 |
Φ45m |
45 |
4.633 |
1590 |
Manual |
—- |
20 |
JTC672A-44 5.2KW |
YCJ160-S 2.2KW |
515 |
54.4 |
|
NT-15 |
Φ15m |
15 |
3.5 |
177 |
—- |
—- |
8.4 |
Y132M2-6 5.5KW |
—- |
390 |
12.6 |
|
NQ-18 |
Φ18m |
18 |
3.5 |
255 |
—- |
—- |
10 |
Y132M2-6 5.5KW |
—- |
560 |
11.6 |
|
NQ-24 |
Φ24m |
24 |
3.4 |
452 |
—- |
—- |
12.7 |
Y160M-6 7.5KW |
—- |
1000 |
26.6 |
|
NG-30 |
Φ30m |
30 |
3.6 |
707 |
|
—- |
16 |
Y160M-6 7.5KW |
—- |
1570 |
30.9 |
|
NJ-38 |
Φ38m |
38 |
4.9 |
1134 |
—- |
—- |
10-25 |
JZT252-4 11KW |
Y160M-6 7.5KW |
1600 |
63.3 |
|
NT-45 |
Φ45m |
45 |
5.05 |
1590 |
Auto |
—- |
19.3 |
Y160L-6 11KW |
—- |
2400 |
66.8 |
|
NTJ-53 |
Φ53m |
53 |
5.07 |
2202 |
—- |
—- |
23.18 |
Y180L-6 |
—- |
6250 |
89.1 |
|
NT-100 |
Φ100m |
100 |
5.65 |
7846 |
—- |
—- |
43 |
Y180L-6 15KW |
—- |
3030 |
214.9 |
Note: This is just reference. Please contact us to get price and details.
