Sand Washing Machine

Sand Washing Machine

Applied Materials:

River pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand, etc.


Applications:

Widely used in construction sites, sand and gravel fields, glass factories, power stations, concrete and stone, and electric fields.

Description

Introduction of Sand Washing Machine

Sand washing machine is a kind of water washing sand washing equipment used with the sand making machine. The sand washing machine can wash the mixed sand produced by the sand making machine to remove the trace stone powder and impurities, so as to improve the quality of the sand.

The wheel bucket sand washing machine is mainly divided into single wheel bucket sand washing machine, double wheel bucket sand washing machine and three wheel bucket sand washing machine. It is used for washing and dewatering of building sand and stone. It has high cleaning height, reasonable structure, large output, less sand loss in the process of sand washing, especially its transmission part is isolated from water and sand, so its failure rate is much lower than the current commonly used sand washing machine, which is the choice of upgrading and replacement of domestic sand washing industry.
Fodamon sand washing machine is made of special materials, which can resist wear and corrosion, make it run normally in any harsh environment, and greatly extend its service life; in addition, the energy-saving effect of sand washing machine is also very significant.

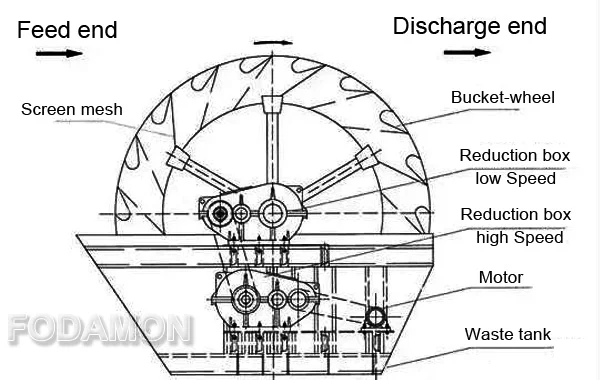

Structure of Sand Washing Machine

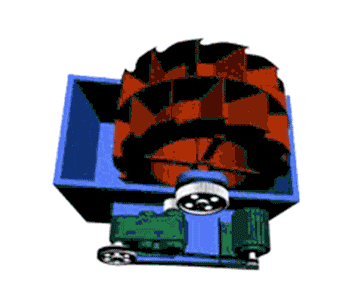

Working Principle

During operation, the motor drives the impeller to rotate slowly after decelerating through the V-belt, reducer and gear. The sand enters the washing tank from the feeding tank, rolls under the drive of the impeller, and grinds with each other to remove the impurities covering the surface of the sand and destroy the water vapor layer covering the sand, so as to facilitate dehydration. At the same time, water is added to form a strong water flow to timely remove the impurities and foreign matters with small specific gravity, And discharge from the overflow outlet washing tank to complete the cleaning function. The clean sand is taken away by the blade, and the sand is poured into the discharge chute from the rotating impeller to complete the cleaning function of the sand.

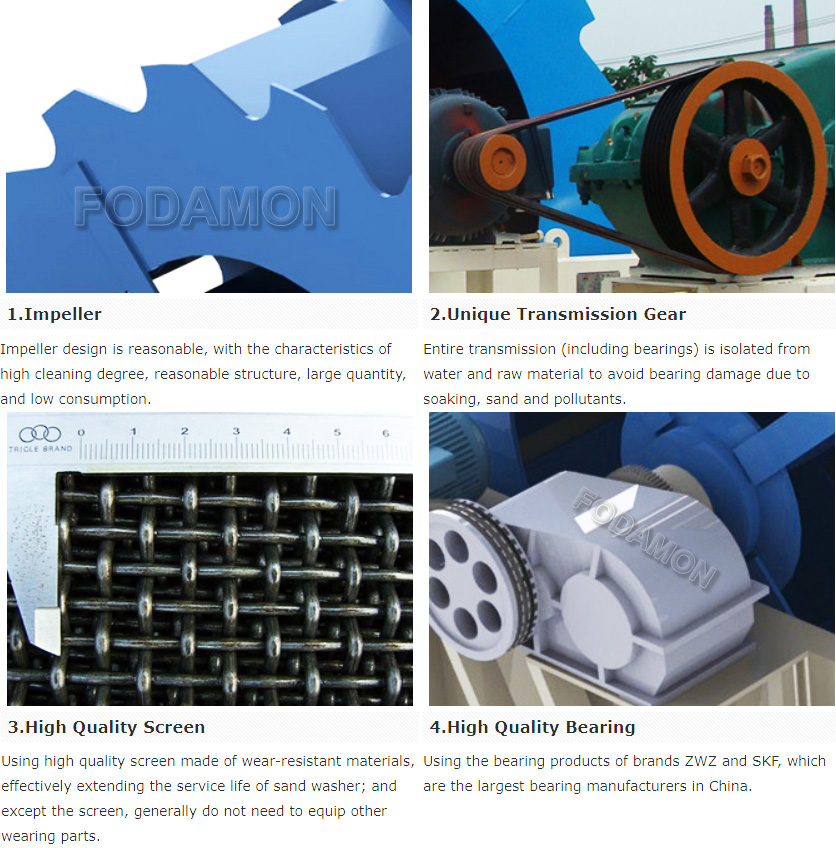

Advantage of Fodamon Sand Washing Machine


Final product After Sand Washing Machine




Technical Data

Model

Capacity
(t/h)

Return sand capacity(t/h)

Power
(kw)

Weight
(kg)

GX2000

8-40

3-8

4

1900

GX2600

20-100

5-15

5.5

3500

GX2800

50-130

8-70

7.5

5100

GX3200

240-300

80-130

11

8800

GX3600

280-500

100-200

15

14200


Note: This is just reference. Please contact us to get suitable solution and competitive price.
