Metal Shredder

Metal Shredder

Applied Materials:

Scrap metal boxes, aluminum iron cans, iron pins, steel slag, scrap, light weight materials and other metal materials.


Applications:

Metal smelting, metal recovery and processing equipment of iron and steel enterprises.

Description

Introduction of Metal shredder

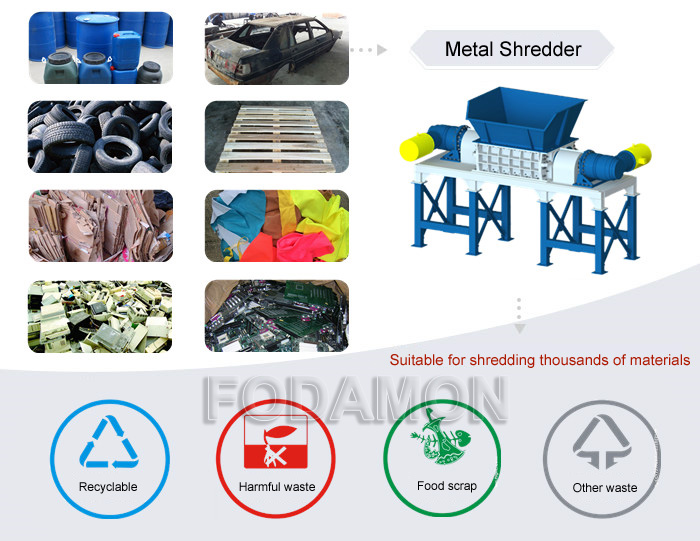

Double shaft shredder produced by our factory can be used to shred up tires, rubber, plastic, leather, ton bag, knitted bag, film, tin can, paint bucket, bicycle, motorcycle, aluminum alloy doors and windows, building formwork, waste pallet, bamboo board, wood, waste furniture, waste household electric tearing machine and so on.

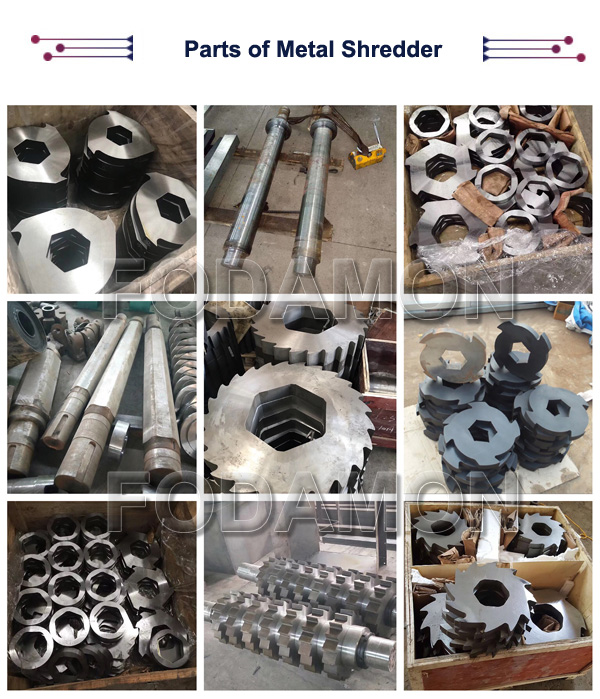

The metal mill equipment produced in our factory is narrow and wide and has good stability. The internal structure of the machine is connected with 4-7 fixed cutter plates with one shaft. The fixed knife is S type. It can be used two times, and the fixed knife has the functions of forced feeding and forced crushing in the metal grinder. The hammer of the metal crusher is made by forging the steel bar of the train wheel. It has good density, economy and durability. Our metal crusher has high output, low energy consumption, high efficiency, uniform discharging and adjustable grain size. And in the use of the equipment, low noise, smooth operation, no pollution, simple operation, convenient maintenance, for the country to create wealth, waste reuse value to improve the convenience made outstanding contribution.

Know more about Fodamon Metal shredder

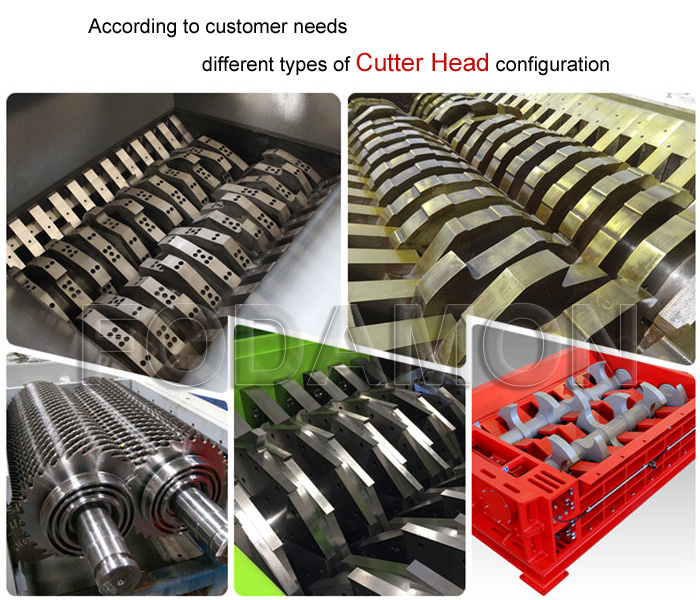

1. The whole knife blade body. It is suitable for crushing all kinds of materials such as cans, plastic, metal, scrap, color steel tile, coal gangue, etc.
2. Assemble the body of the knife. Suitable for crushing heavy metals or thick plastics, any material entering the metal crusher will be quickly crushed into 20x40mm granules.
3. SW tool body quality guarantee. Suitable for crushing general products such as wood, aluminum engine shell, fragile or brittle material.
4. Pineapple knife body professional brand. It is suitable for grinding hard plastics such as grinding circuit boards. It can crush materials to 10mm size, and is a heavy duty material accessory.

Working Principle

All kinds of metal materials are sent to the mainframe of the metal grinder by the feed conveyor. Before sending the machine to the main engine, the scrap steel is pressed down to reduce the occupied area of the scrap iron and steel, and then into the crusher chamber. In the process of crushing, the metal material is rotated with the hammer head to make the smashing metal and the hammer head rotated. After a short time thump and rub the ball, the finished particles flow out from the bottom screen, and the material outflows through the dust remover to blow out a part of the paint and impurities, so that the outflow of metal particles is clean. The bottom is inclined plate type feeding structure. The material is fast and no material is left. The machine is perfect in design, never stuck and jammed.


Technical Data



Model

600

1000

1200

1500

1900

2600

Mainshaft power
(kW)

15*2

30*2

37*2

45*2

90*2

160*2

Speed of mainshaft
(r/min)

18-20

18-20

18-20

14-16

14-16

16-18

Capacity(t/h)

2-5

5-10

6-15

8-18

10-25

25-60

Power of Belt conveyor (kW)

None

None

None

3

3

3

Number of cutters
(piece)

26

30

28

30

40

40

Different materials, different number of knife teeth and blades, can be customized

Diameter of cutters(mm)

Φ260

Φ360

Φ372

Φ530

Φ560

Φ720

Final product size(cm)

3-10

3-10

3-10

3-10

3-10

3-10

Hopper size(mm)

820*900

1200*1000

1400*1000

2000*2000

2300*200

2425*1400

Overall size(mm)

2600*2000*1900

3000*2000*1900

3200*2000*1900

4000*1700*2400

8000*2500*2400

8200*4000*4300

Weight(T)

2.5

5

6

12

15

36

Note: This is just reference. Please contact us to get price and details.
