Mobile Jaw Crusher

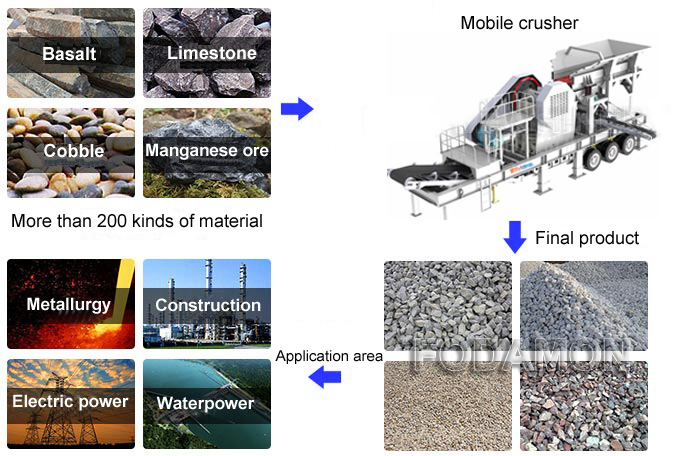

Applied Materials:
Construction waste, basalt, granite, fly ash, cement clinker, river pebbles, limestone, iron ore, bauxite, quartz sand, coal gangue, etc.
Applications:
Metallurgical, chemical, building materials, electricity, transportation and other industrial sectors.
If you want to learn more about our mobile crushing plant, Leave a Message!

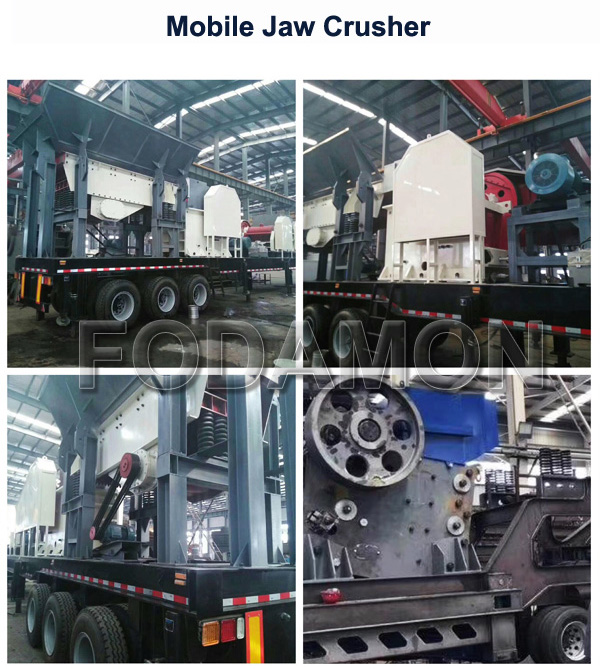

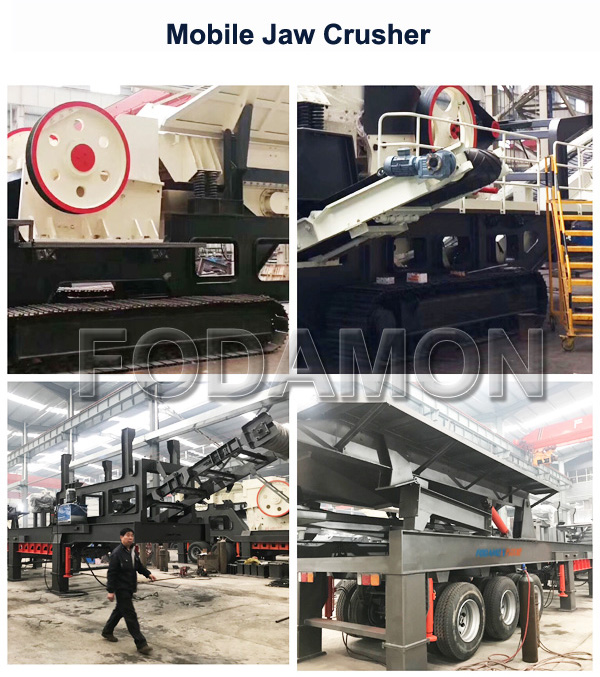

Introduction of Mobile Jaw Crusher
The tire crushing mobile crushing station is mainly composed of a feeder, a jaw crusher and a belt conveyor. The output of the machine is 85~650 tons per hour. The machine adopts an integrated group operation mode, which can be operated separately, eliminating the complex site infrastructure and auxiliary facilities installation work of the split components, and reducing the labor consumption. Suitable for coarse stone crushing, construction waste and so on.

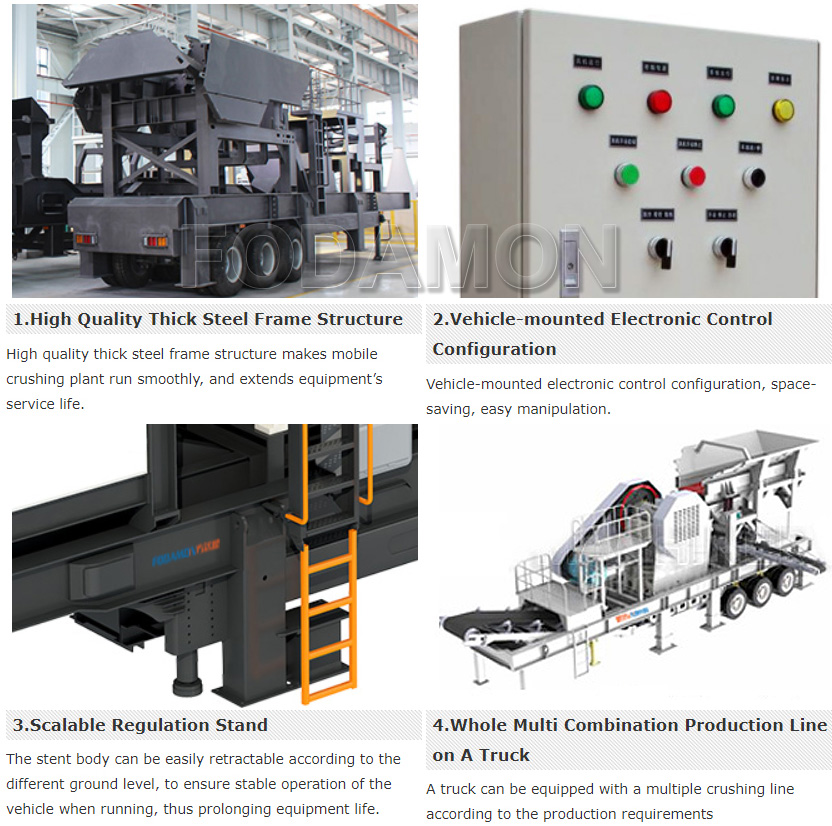

Advantages of Mobile Jaw Crusher
1. Unit integration. It can work directly, eliminating the cumbersome infrastructure installation and working hours.
2. The transportation turning radius is small, flexible and stylish, and meets customer needs.
3. The grounding ratio is lower than the pressure, and the performance is good. For mountains and wetlands, the ability is outstanding.
4. The feeding guard plate is hydraulically lifted and lowered, which is convenient for loading and unloading, convenient and convenient to install, stable and reliable.
5. The feeding guard has a graded double-layer structure that provides a prerequisite for the individualized widening of the panel.
6. The ship’s steel frame structure is adopted, the chassis of the vehicle body is low, the weight is light, and the volume is reasonably controlled.
If you want to learn more about our mobile crushing plant, Leave a Message!
Working Principle
The material is evenly conveyed into the crusher through the feeder. After the jaw crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cycle crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The tire crushing mobile crushing station can remove the circular vibrating screen according to the actual production needs, and realize the preliminary crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
If you want to learn more about our mobile crushing plant, Leave a Message!
If you want to learn more about our mobile crushing plant, Leave a Message!
Technical Data
|
SMC Jaw crusher |
SMC600 |
SMC750 |
SMC900 |
SMC1060 |
SMC1200 |
SMC1300PEX |
|
Transport dimension |
||||||
|
Length (mm) |
8600 |
9600 |
11097 |
13300 |
15800 |
9460 |
|
Width (mm) |
2520 |
2520 |
3759 |
2900 |
2900 |
2743 |
|
Height (mm) |
3770 |
3500 |
3500 |
4440 |
4500 |
3988 |
|
Weight (Kg) |
15240 |
22000 |
32270 |
57880 |
98000 |
25220 |
|
Axle load (kg) |
10121 |
14500 |
21380 |
38430 |
64000 |
14730 |
|
Traction pin load (kg) |
5118 |
7500 |
10890 |
19450 |
34000 |
10490 |
|
Jaw crusher |
||||||
|
Model |
PE |
PE |
PE |
PE |
PE |
PEX |
|
Inlet size (mm) |
400X600 |
500X750 |
600X900 |
750X1060 |
900X1200 |
300X1300 |
|
Adjustment range of discharge port (mm) |
40-100 |
50-100 |
65-180 |
80-180 |
95-225 |
20-90 |
|
Capacity (m³/h) |
10-35 |
25-60 |
30-85 |
70-150 |
100-240 |
10-65 |
|
Vibrating feeder |
||||||
|
Hopper volume |
3 |
4 |
7 |
10 |
10 |
3 |
|
Width of volume |
2200 |
2500 |
3000 |
3000 |
3000 |
2200 |
|
Model |
GZT0724 |
GZT0724 |
GZT0932Y |
ZSW490X110 |
ZSW600X130 |
GZT0724 |
|
Belt conveyor |
||||||
|
Model |
B650X6 |
B800X7 |
B1000X8 |
B1000X11 |
B1200X13 |
B1000X7 |
Note: This is just reference. Please contact us to get price and details.
