Impact Crusher

Impact Crusher

Applied Materials:

Pebbles, granite, basalt, iron ore, limestone, quartz stone, diabase, etc.


Applications:

Sand and gravel field, Mining, Coal mining, Concrete mixing station, Dry powder mortar, Power plant desulfurization, Quartz sand, etc.

Description

Introduction of Impact Crusher

Impact crusher, unique structural design, processed products are cubic, without tension and cracks, good grain shape, can crush various coarse, medium and fine materials with feed particle size not exceeding 500mm and compressive strength not exceeding 350MPa> ( (Granite, limestone, concrete, etc.), the size of the discharge material can be adjusted, and the crushing specifications are diverse. It is widely used in industries such as hydropower, highways, artificial sand and stone, and crushing.

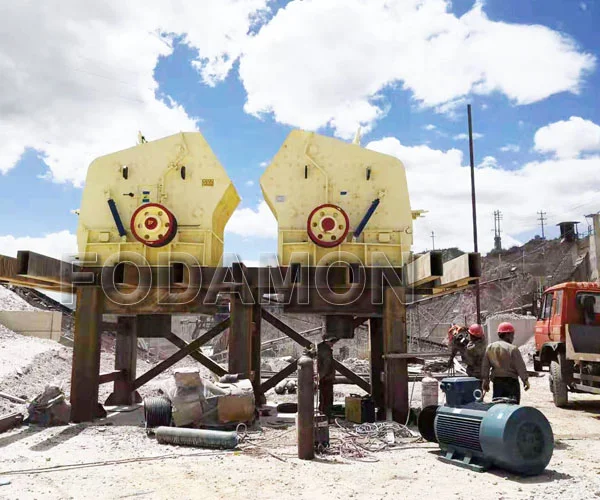

impact crusher fodamon machinery


Working Principle of Impact crusher

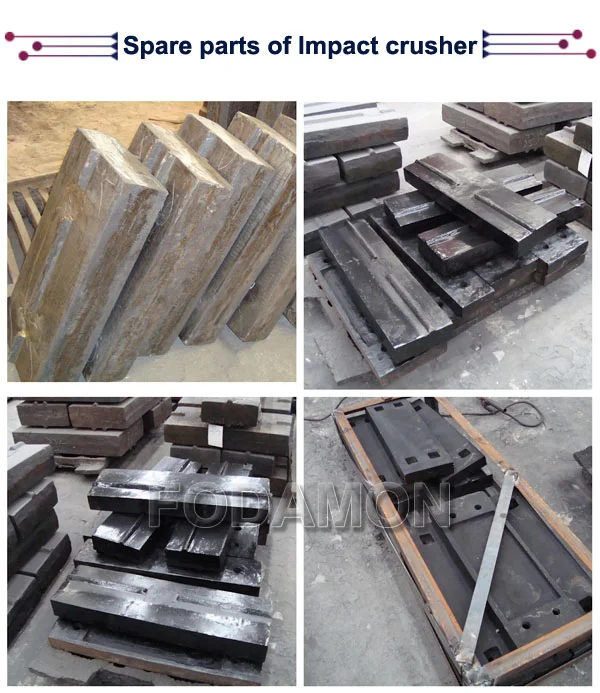

The impact crusher is a kind of crushing machine which uses impact energy to crush materials. When the machine works, driven by the motor, the rotor rotates at high speed. When the material enters the action zone of the plate hammer, it impacts and crushes with the plate hammer on the rotor, and then is thrown to the impact device to crush again. Then it bounces back to the plate hammer from the impact liner. The action zone is re-broken, and the process is repeated. The material is re-broken from large to small into the first, second and third counterattack chambers until the material is broken to the required size and discharged from the outlet. By adjusting the clearance between the counterattack frame and the rotor, the grain size and shape of the material can be changed.

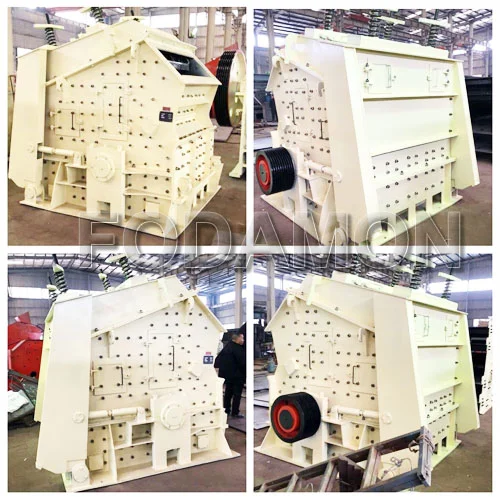

impact crusher fodamon machinery

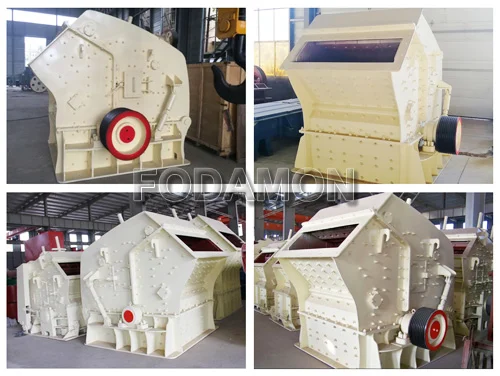

impact crusher fodamon machinery

Technical parameter of Impact crusher

Model

Specifications
(mm)

Feed opening
(mm)

Max feeding side length
(mm)

Capacity
(t/h)

Power
(kw)

Total weight
(t)

Dimensions
(LxWxH)
(mm)

PF-0607

ф644x740

320x770

100

10-20

30

4

1500x1450x1500

PF-0807

ф850x700

400x730

300

15-30

30-45

8.13

1900x1850x1500

PF-1007

ф1000x700

400x730

300

30-70

45

12

2330x1660x2300

PF-1010

ф1000x1050

400x1080

350

50-90

55

15

2370x1700x2390

PF-1210

ф1250x1050

400x1080

350

70-130

110

17.7

2680x2160x2800

PF-1214

ф1250x1400

400x1430

350

100-180

132

22.4

2650x2460x2800

PF-1315

ф1320x1500

860x1520

500

130-250

220

27

3180x2720x2920

PF-1320

ф1320x2000

860x2030

500

160-350

300

30

3200x3790x3100

Note: This is just reference. Please contact us to get suitable solution and competitive price.
