Double Stage Crusher

Double Stage Crusher

Applied Materials:

River pebble, granite, Xuan Wuyan, iron ore, limestone, quartzite, diabase, iron ore, gold ore, copper ore, etc.


Applications:

Sand and gravel yard, mining, coal mining, concrete mixing station, dry mortar, power plant desulfurization, quartz sand, etc.

Description

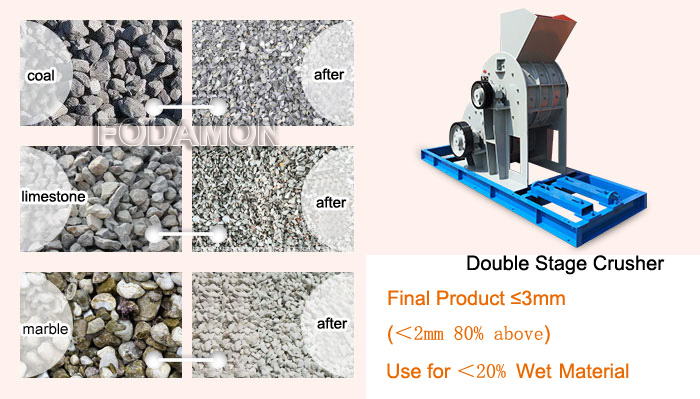

Introduction of Double Stage Crusher


Double stage crusher also called double rotor hammer fine crusher, it is a new type of raw material crusher, which overcomes the disadvantage of difficult discharging because of the wet material with high water content. It has advantages of high production efficiency, good crushing effect,etc.


double stage crusher fodamon machinery


Application range of double stage crusher


Double stage crusher is suitable for crushing calcite, limestone, coal slag,furnace slag,ore slag in the brick plant, construction wastes,shale,coal gangue,and so on, thus solving the problems of crushing high-humidity materials such as gangue and coal cinder which are often used as additive materials and fuel and for producing standard brick and air brick. thus solving the problems of crushing high-humidity materials such as gangue and coal cinder which are often used as additive materials and fuel and for producing standard brick and hollow brick. In fact, double  Stage Crusher is the same as two Hammer Crushers combining together reasonably. Two rotors are applied at the same time in this machine.


Why we call it two stage crusher?

The two-stage crusher can easily crush the material like coal gangue, shale and coal cinder, etc. A two-stage crushing machine is equivalent to the combination of two hammer crushers.


Why choose the Fodamon two stage crushing machine?

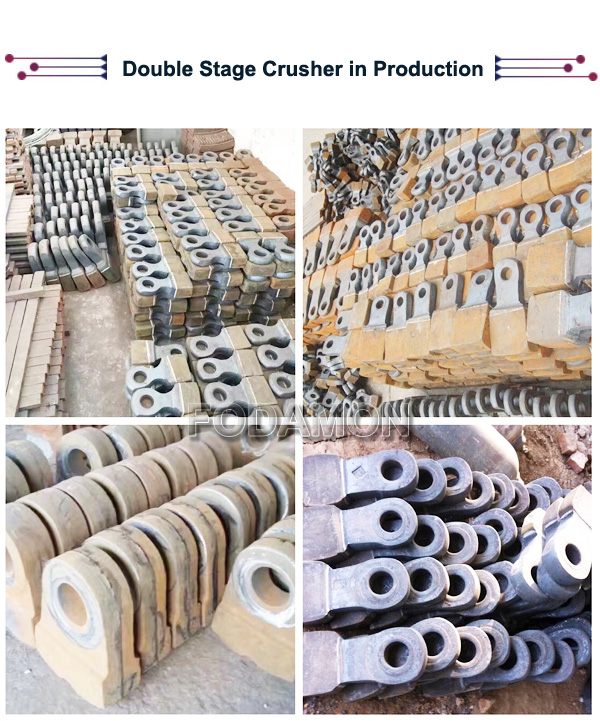

1. If the hammer is severely battered, you do not need to repair or change with a new one. Just moving its location is OK.
2. The two-stage crushing machine enjoys the advantages of even feeding and big crushing ratio, thus it can make a lot of benefits for you.
3. The stay time of material in crushing cavity can be shorter, you can save a lot of power and cost. FDM two-stage crusher is such a machine.
double stage crusher fodamon machinery
double stage crusher fodamon machinery
double stage crusher fodamon machinery
double stage crusher fodamon machinery
double-stage-crusher-fodamon-machinery


Technical parameter of Double Stage Crusher

Model

SCF600×400

SCF600×600

SCF800×600

SCF800×1000

Max.feed size(mm)

≤100

≤150

≤200

≤260

Discharge size(mm)

≤3mm (<2mm 90%)

≤3mm (<2mm 90%)

≤3mm (<2mm 90%)

≤3mm (<2mm 90%)

Capacity (t/h)

15-25

25-40

40-55

60-80

Power(kw)

18.5+22kw

22+22kw

37+45kw

75+90kw

Overall size(mm)

2665×725×1698

2760x1280x1750

3625×1314×2065

4500x1700x3150
