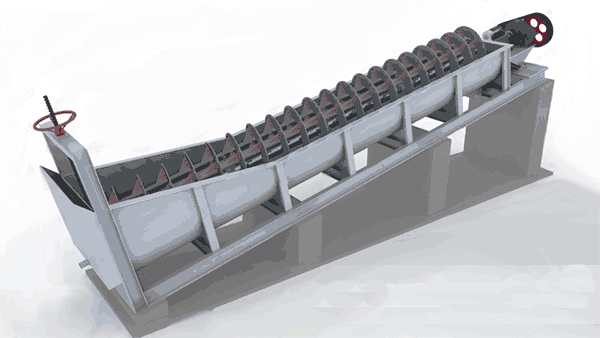

Spiral Sand Washing Machine

Spiral Sand Washing Machine

Applied Materials:

River pebbles, pebbles, limestone, granite, quartz sand, natural sand, machine sand, river sand, etc.


Applications:

Widely used in construction sites, sand and gravel fields, glass factories, power stations, concrete and stone, and electric fields.

Description

Introduction of Spiral Sand Washing Machine

Spiral sand washing machine is widely used in sand and stone field, mine, building materials, transportation, chemical industry, water conservancy and hydropower, concrete mixing station and other industries to wash materials, and it is also an indispensable sand production line and gravel production line.


Working Principle

When the sand washing machine is working, the motor drives the impeller to rotate slowly after decelerating through the triangle belt, reducer and gear. The sand enters the washing tank with the feed tank, rolls under the drive of the impeller, and grinds with each other to remove the impurities covering the surface of the sand, and destroys the water vapor layer covering the sand particles, so as to facilitate dehydration; meanwhile, add water to form a strong water flow, and timely remove the impurities and small specific gravity The foreign matters are taken away and discharged from the overflow outlet washing tank to complete the cleaning function. The clean sand is taken away by the blade, and then the sand is poured into the discharge chute from the rotating impeller to complete the cleaning function of the sand.


Structure of Spiral Sand Washer





Spiral Sand Washing Machine Technical Data

Model

SW508

SW610

SW762

SW915

2SW915

SW1115

2SW1115

Screw diameter (mm)

508

610

762

915

915

1115

1115

Length of trough (mm)

6705

7225

7620

7585

7585

9782

9782

Max. feeding size (mm)

≤10

≤10

≤10

≤10

≤10

≤10

≤10

Capacity (t/h)

20

40-50

50-75

100

200

175

350

Speed of Screw (r/min)

38

32

26

21

21

17

17

Power (kw)

5.5

7.5

11

11

2x11

15

2x15

Water Consumption (t/h)

6-60

6-63

9-63

10-80

20-160

20-150

40-300

Overall size
(LxWxH) (mm)

6500x2020x2946

7350x2510x3303

8545x2650x3862

8900x2861x3821

11270x3645x4340

11270x4365x4415

11270x4365x4415

Weight (t)

2.52

3.09

5.23

6.27

11.11

10.18

17.94

Note: This is just reference. Please contact us to get suitable solution and competitive price.
