Mobile Cone Crusher
Applied Materials:
River pebble, rock (limestone, granite, basalt, diabase, andesite, etc.), ore tailings, artificial sand making of stone chips.
Applications:
Recycling of mines, coal mines, garbage and construction waste, earth and stone works, urban infrastructure, roads or construction sites.
If you want to learn more about our mobile crushing plant, Leave a Message!
Introduction of Mobile Cone Crusher

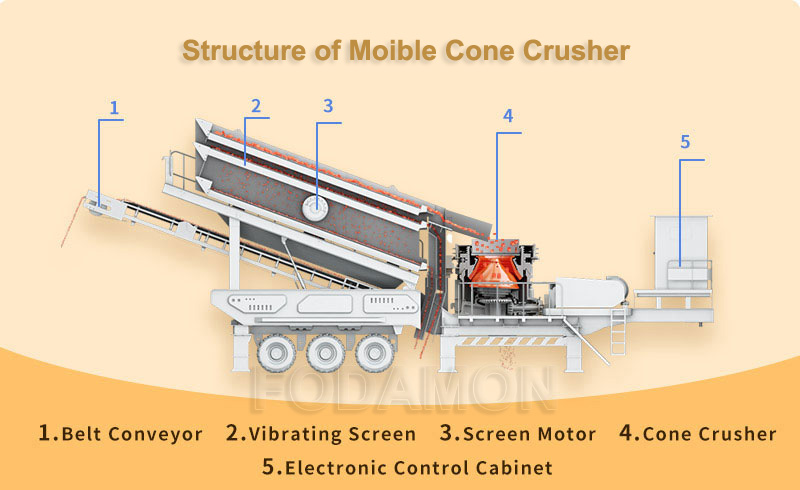

The tire cone crushing + vibrating screen moving crushing station is mainly composed of high-efficiency cone crusher, high-performance vibrating screen, belt conveyor, electric motor and control box. This machine is mainly used in the field of fine crushing operations. In the production of sand and gravel materials, it produces higher hardness and finer grain sand and gravel products according to different stone and finished products. The cone crusher can be adjusted to different crushing chamber types according to actual needs, and the field and scope of the medium crushing cone moving crushing station are expanded.
Advantages of Fodamon Mobile Cone Crusher
1. The overall streamlined body structure design, metal paint spraying.
2. The machine is compatible with two kinds of crushing processes: “first crushed and then sieved” and “first sieved and then crushed”, and the adaptability is strong.
3. Strong mobility. The chassis is specially machined to suit not only the form of ordinary roads, but also the rugged roads of the crushing plant, making it easy to handle all kinds of harsh working environments.
4. The crushing cavity type can be adjusted, and the field of use and the scope of use are wide.
5. The entire unit is installed in one piece for convenience and flexibility.
6. Low noise and less dust.
If you want to learn more about our mobile crushing plant, Leave a Message!
Working Principle

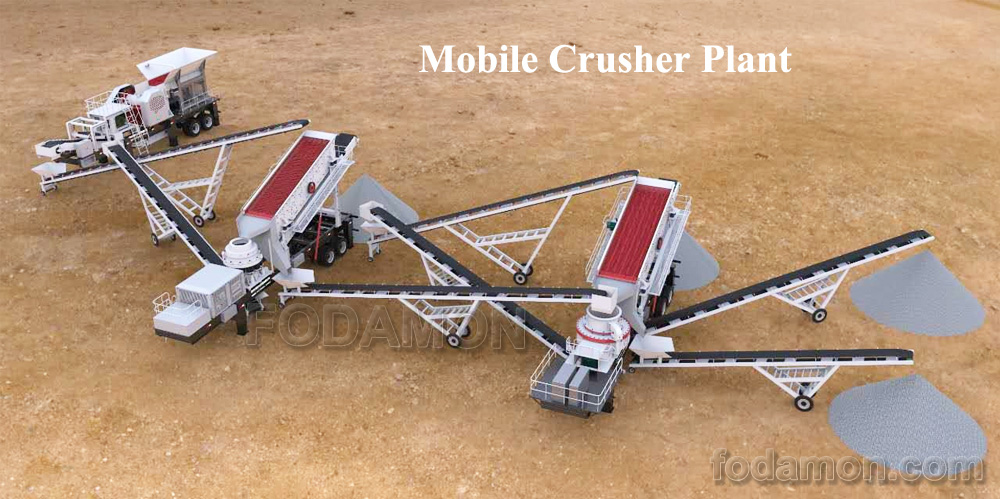

The material is evenly conveyed to the cone crusher through the feeder. After the cone crusher is initially crushed, the closed circuit system is formed by the circular vibrating screen to realize the cycle crushing of the material, and the finished material is output by the conveyor for continuous crushing operation. The tire cone crushing + vibrating screen moving crushing station can remove the circular vibrating screen according to the actual production needs, and realize the direct crushing of the material directly. It is convenient and flexible to operate with other crushing equipment.
If you want to learn more about our mobile crushing plant, Leave a Message!
If you want to learn more about our mobile crushing plant, Leave a Message!
Technical Data
|
SMC Mobile Cone crusher |
SMC120SMHS |
SMC180SMHS |
SMC180SMHS |
SMC250SMHS |
SMC250SMH |
|
Transport dimension |
|||||
|
Length(mm) |
11200 |
11800 |
10000 |
12300 |
10816 |
|
Width(mm) |
2743 |
2743 |
2480 |
2900 |
2743 |
|
Height(mm) |
4200 |
4200 |
4160 |
4200 |
4160 |
|
Weight(Kg) |
28400 |
30500 |
22400 |
48700 |
35700 |
|
Axle load(kg) |
15500 |
16300 |
14300 |
31100 |
22900 |
|
Traction pin load(kg) |
12900 |
14200 |
8100 |
17600 |
12800 |
|
Cone crusher |
|||||
|
Model |
SMH120 |
SMC180SMHS |
SMC180SMH |
SMC250SMHS |
SMC250SMH |
|
Max. Feeding size(mm) |
160 |
180 |
180 |
240 |
240 |
|
Adjustment range of discharge port (mm) |
22-32 |
22-32 |
22-32 |
26-51 |
26-51 |
|
Vibrating screen |
|||||
|
Model |
3YK1545 |
3YK1548 |
4YK1848 |
||
|
Belt conveyor |
|||||
|
Model |
B800X8 |
B1000X8 |
B1000X8 |
||
Note: This is just reference. Please contact us to get price and details.
