Mobile Crusher

Mobile Crusher

Applied Materials:

Construction waste, basalt, granite, fly ash, cement clinker, river pebbles, limestone, iron ore, bauxite, quartz sand, coal gangue, etc.


Applications:

Metallurgical, chemical, building materials, electricity, transportation and other industrial sectors.

Description

Introduction of Mobile Crusher

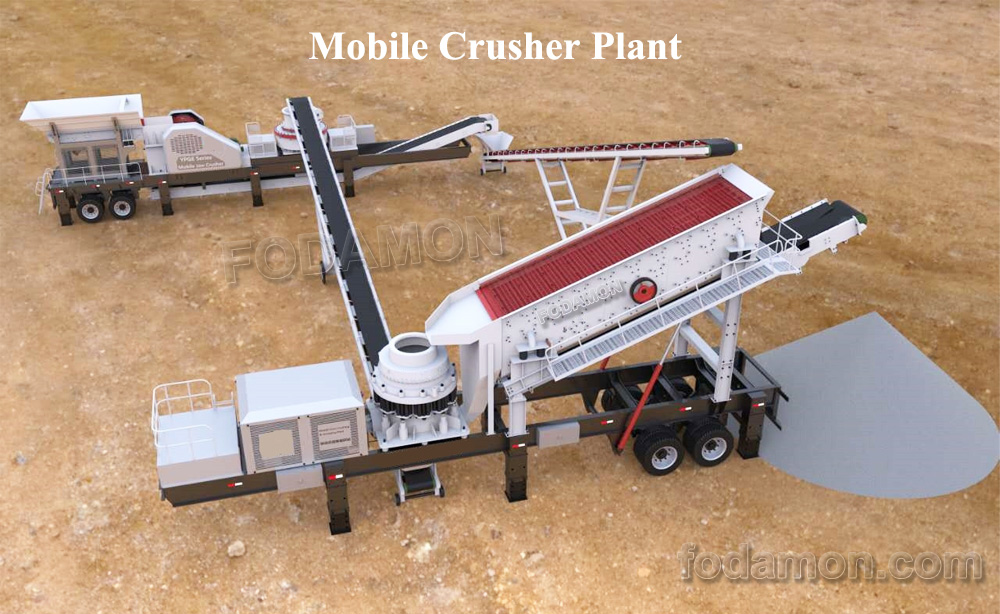

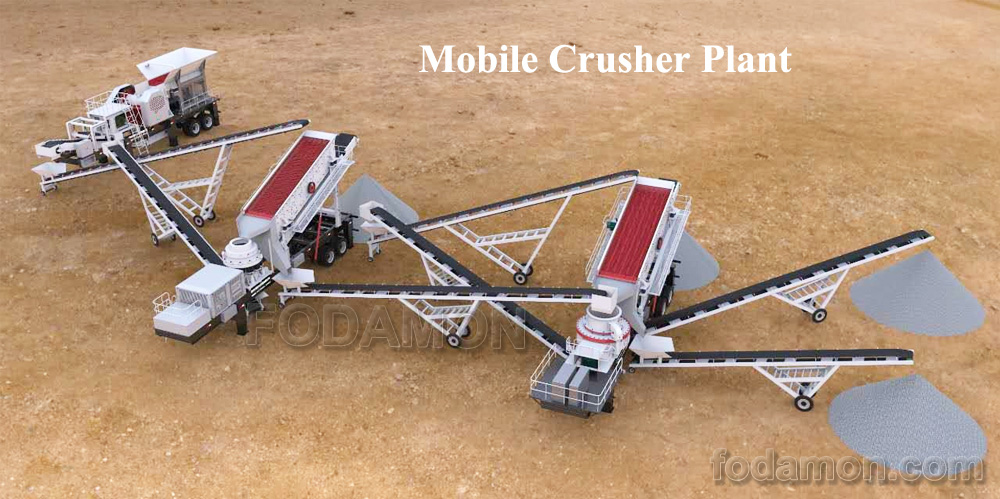

Mobile Crusher is a kind of mobile crusher which integrates crushing, screening and feeding operation. It is widely used to process pebble, basalt, granite, limestone, quartz, construction waste, concrete, gold ore, iron ore, coal and other stone, ore and other minerals.


According to the different crushing materials, we have the existing production, Mobile Jaw Crusher, Mobile Sand Making Machine, Mobile Cone Crusher, Mobile Impact Crusher, Mobile Hammer Crusher, Mobile Vibrating screen, etc. Depending on the driving method, we have Rubber-Tyred Mobile Crushing Stations and Crawler-Type Mobile Crushing Stations. Tailor-made solutions for you.

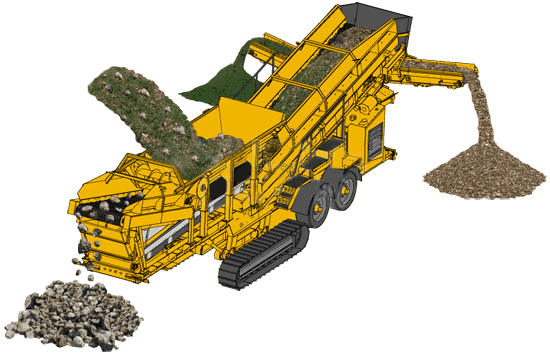

Working Principle of Mobile Crusher

Compared with the ordinary crusher, the mobile crusher station has the advantages of convenient movement, small floor area, direct site selection, and can be put into production when it is placed on the site. Another important feature is that the ordinary crusher transfers the raw materials to the crushing chamber of the crusher, between the feeder and the crusher through the belt conveyor placed on the ore surface, while the mobile crusher station The raw material feeder of crusher in the crushing station is close to each other, and the intermediate cross does not need the transmission of conveyor. The raw material of ore surface is directly transported to the feeding port of crusher by shovel, and the raw material will be injected into the crusher at a fixed speed, which not only reduces the unnecessary process, but also greatly reduces the unnecessary trouble in the speed and cost. Each crushing device in the crushing station Prepare to work back and forth until all raw materials are broken.




Final product after crushing-Fodamon Machinery.jpg

Technical Data



SMC Jaw crusher

SMC600

SMC750

SMC900

SMC1060

SMC1200

SMC1300PEX

Transport dimension

Length (mm)

8600

9600

11097

13300

15800

9460

Width (mm)

2520

2520

3759

2900

2900

2743

Height (mm)

3770

3500

3500

4440

4500

3988

Weight (Kg)

15240

22000

32270

57880

98000

25220

Axle load(kg)

10121

14500

21380

38430

64000

14730

Traction pin load(kg)

5118

7500

10890

19450

34000

10490

Jaw crusher

Model

PE400X600

PE500X750

PE600X900

PE750X1060

PE900X1200

PEX300X1300

Inlet size (mm)

400X600

500X750

600X900

750X1060

900X1200

300X1300

Adjustment range of discharge port (mm)

40-100

50-100

65-180

80-180

95-225

20-90

Capacity (m³/h)

10-35

25-60

30-85

70-150

100-240

10-65

Vibrating feeder

Hopper volume(m³)

3

4

7

10

10

3

Width of Hopper(mm)

2200

2500

3000

3000

3000

2200

Model

GZT0724

GZT0724

GZT0932Y

ZSW490X110

ZSW600X130

GZT0724

Belt conveyor

Model

B650X6

B800X7

B1000X8

B1000X11

B1200X13

B1000X7

Note: This is just reference. Please contact us to get suitable solution and competitive price.
