Heat Pump Dryer
Applied Materials:
Vegetables, fruits, herbs, seafood, meat, etc.
Applications:
Agriculture, food industry, pharmaceutical industry, industry, etc.
If you want to learn more about our drying equipment, Leave a Message!
Introduction of heat pump dryer
Heat pump dryer is a patented agricultural and sideline product heat pump drying equipment improved by Baixin machinery according to user practice. The whole set of equipment includes host, compressor, outdoor unit, pipeline, etc. Advanced air-jet enrichment technology is adopted to ensure that the unit maintains high energy efficiency and strong heating capacity under the low temperature working condition of – 10 ℃; The air outlet temperature is higher than 80 ℃, which thoroughly solves the problems of sharp decline of capacity and reliability of traditional heat pump dryer under low-temperature and harsh environmental conditions. Compared with the ordinary heat pump system, the heat pump with air-jet enrichment increases the system performance at low ambient temperature, improves the energy efficiency ratio by 20% and the drying capacity by 15%. The air-jet thickening compressor adopts two-stage split flow intermediate air-jet technology and uses economizer for heat exchange to improve the undercooling and realize the effect of thickening; At the same time, it has the characteristics of large compression ratio and high-pressure chamber. It operates in a wide temperature range from – 10 ℃ to 43 ℃, and its energy efficiency is more than 20% higher than that of traditional compressors.

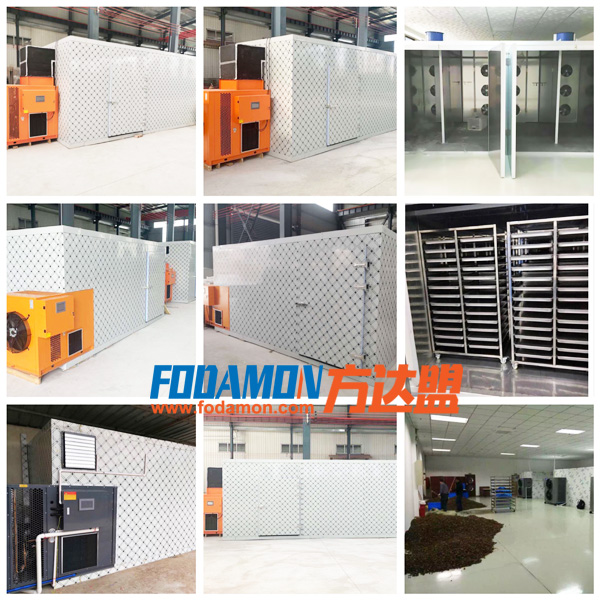

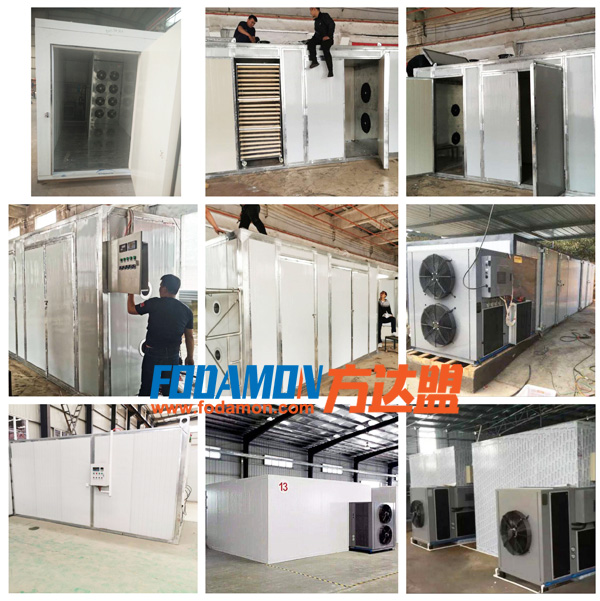

Main components of heat pump dryer
1: Heat pump drying unit: mainly composed of compressor, refrigerant, evaporator, condenser (heat exchanger), connecting pipeline and control system.
2: Drying room
3: Material rack and tray.
Application fields of heat pump dryer:
- High temperature heat pump dryer for traditional Chinese medicine: Panax notoginseng, star anise, Morinda officinalis, Dendrobium, yam Huaishan, Ganoderma lucidum, sea cucumber, honeysuckle, Siraitia grosvenorii, cinnamon, ginseng, ginger, Morinda officinalis
- Food heat pump dryer: cured meat, sausage, casing, cured fish, cured meat, cured duck, sausage drying, rice flour, river flour, noodles, dried bean curd
- Grain heat pump dryer: corn, peanuts, soybeans, dried beans, corn seeds, seeds
- Heat pump dryer for agricultural products: vegetables, mushrooms, tremella, agaric, pepper, cauliflower, tea tree mushroom, taro, dried vegetables, bamboo shoots, cassava, starch, longan, litchi, banana slices, mango, honey jujube, jujube, edible fungi
- High temperature tea heat pump dryer: Pu’er tea, Tieguanyin tea, fried tea, Gaoshan tea, green tea, black tea, all kinds of tea.
- Wood heat pump dryer: mahogany, mahogany furniture dryer, red sandalwood, Huanghua pear wood, black acid branch wood, big red acid branch, ebony, striped ebony, chicken wing wood, mahogany finished products, mahogany furniture paint drying room, mahogany health room, wood floor and wood products; Bamboo products, bamboo sticks, bamboo plywood, bamboo flooring; Veneer dryer, Eucalyptus rotary cutting board dryer, building formwork dryer
- Heat pump dryer for seafood: sea fish, shredded squid, dried shrimp, dried abalone and sea cucumber
- Industrial heat pump dryer: leather, clothing cloth, gypsum block, plastic, paper cylinder, woven belt, EPC
- Tobacco heat pump dryer: Yunnan tobacco, Fujian tobacco and Hunan tobacco
- Assembly line heat pump dryer: rubber product assembly line dryer, food assembly line dryer, medicinal material assembly line dryer and industrial product assembly line dryer
If you want to learn more about our drying equipment, Leave a Message!
If you want to learn more about our drying equipment, Leave a Message!
Technical Parameter of heat pump dryer
|
Drying type |
Normal temperature type |
Low temperature type |
Low temperature type |
|||||
|
Operating temperature range |
℃ |
10-43 |
|
-10-43 |
-15-38 |
|||
|
Drying temperature range |
℃ |
30-75 |
|
30-75 |
30-60 |
|||
|
Unit model |
PAXRW |
060S |
120S-U |
040S-PS |
060S-PS |
120S-U-PS |
075-PS |
150S-U-PS |
|
Customized heat |
Kw |
18.0 |
36.0 |
12.0 |
18.0 |
36.0 |
23.0 |
45.0 |
|
Input power |
Kw |
4.7 |
10. |
3.5 |
4.8 |
10.2 |
7.5 |
15.2 |
|
Operating current |
A |
8.7 |
18.2 |
18 |
8.8 |
18.8 |
12.5 |
25.4 |
|
Current form |
V/Ph/Hz |
380/3/50 |
380/3/50 |
220/1/50 |
380/3/50 |
380/3/50 |
380/3/50 |
380/3/50 |
|
Compressor form |
/ |
Fully enclosed vortex type |
High temperature air jet stewing vortex |
Air jet stewing vortex |
||||
|
Temperature control accuracy of drying room |
℃ |
±1 |
±1 |
±1 |
±1 |
|||
|
Number of compressors |
|
1 |
2 |
1 |
1 |
2 |
1 |
2 |
|
Size of liquid pipe and gas pipe |
inch |
1/2,3/4 |
1/2×2,3/4 |
3/8,5/8 |
1/2,3/4 |
1/2×2,3/4 |
1/2,3/4 |
1/2,3/4×2 |
|
Refrigerant |
/ |
R134a |
R22 |
|||||
|
Overall dimension（L/W/H） |
mm |
1071×420×1240 |
1470×726×1150 |
1066×450×790 |
1071×420×1240 |
1470×726×1150 |
1071×420×1240 |
1470×726×1150 |
|
Package size（L/W/H） |
mm |
1210×510×1400 |
1610×800×1330 |
1210×530×930 |
1210×510×1400 |
1610×800×1330 |
1420×430×1380 |
1600×790×1320 |
|
Net weight / gross weight |
kg |
121/160 |
166/210 |
100/140 |
121/160 |
166/210 |
140/180 |
110/130 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
