Hydraulic Cone Crusher

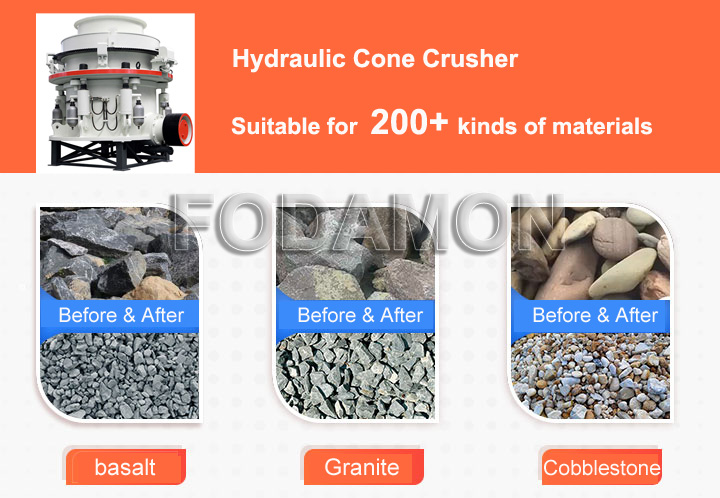

HPD series multi-cylinder hydraulic cone crusher is a new type of cone crusher independently developed by our company, which is suitable for crushing high-hard materials and has strict requirements on the shape of the product. The machine is superior to the traditional spring cone crusher. The multi-cylinder hydraulic cone crusher is suitable for crushing various ores and rocks of medium and medium hardness, such as limestone, iron ore, pebbles, non-ferrous metal ore, granite, basalt, limestone, quartzite and sandstone. Its high speed, high crushing capacity and unique patented design make the finished product with extremely high quality cube shape, and the easy maintenance features ensure extraordinary high stability operation. It is famous all over the world and is today’s mining construction industry. A new generation of products that replace spring cone crushers and newer general hydraulic cone crushers.

1. Structure optimization, high efficiency: Unique spindle fixing, eccentric sleeve rotating structure, optimized transmission components and internal structure design, strong equipment bearing capacity, large installed power, small size, high efficiency and low noise.

2. Fully hydraulic adjustment, convenient and reliable: With full hydraulic control, the equipment is cleaned from the safety chamber to the adjustment and locking. All hydraulic operation is adopted, the work is more stable and reliable, the operation is convenient, the downtime is reduced, and the fully automatic operation can be realized.

3. Hydraulic lubrication integration, equipment control automation: equipped with integrated hydraulic lubrication system and centralized intelligent intelligent control system, not only saves the cost of hydraulic lubrication input, but also monitors the running status of the equipment in real time to ensure the safe and stable operation of the equipment. Equipment operation is more worry-free and labor-saving.

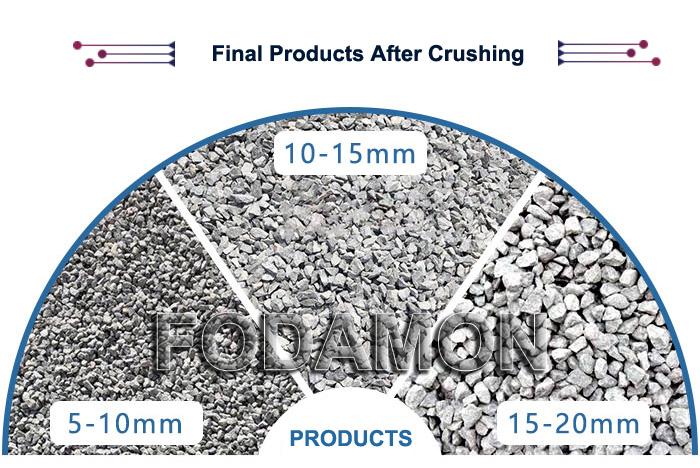

4. Laminated and broken, good grain shape: The material is crushed by the principle of laminating crushing, and the crushing efficiency is greatly improved by optimizing the equipment and cavity type; the granularity of the finished material is cubic, the fineness is uniform, and the finished product quality high.

5. Multi-purpose machine, flexible cavity conversion: It is equipped with medium and fine crushing cavity type. It only needs to replace a small number of parts such as corresponding cavity liner to convert between cavity types to meet the requirements of medium and fine crushing process. A multi-purpose machine.

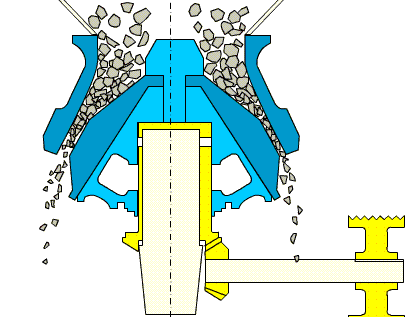

During operation, the pulley or the coupling, the transmission shaft and the conical portion are driven by the rotation of the motor to make the eccentric shaft rotate periodically under the axial line. After the material enters the crushing chamber from the material inlet, it is crushed by the mutual impact of the eccentric shaft and the rolling wall. The hydraulic safety system can remove the faulty parts of the support sleeve and the fixed taper part by hydraulic pressure when the machine has an iron failure or a boring phenomenon, which greatly reduces the maintenance rate and improves the production efficiency while playing a good insurance function.
