Double Roll Crusher

Double Roll Crusher

Applied Materials:

 River pebbles, calcite, quartz, marble, pebbles, bentonite, iron ore, bluestone, rocks, slag, limestone, weathered sand, diabase, granite, basalt, etc.


Applications:

Cement, chemical industry, electric power, mining, metallurgy, building materials, refractories, coal mines, etc.

Description

Description of Double roll crusher

Double roll crusher is mainly used for the crushing of medium or lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production. Roll crushers have a theoretical maximum reduction ratio of 4:1. If a 2 inch particle is fed to the roll crusher the absolute smallest size one could expect from the crusher is 1/2 inch. Roll crushers will only crush material down to a minimum particle size of about 10 Mesh (2 mm). Some major advantages of roll crushers are they give a very fine product size distribution and they produce very little dust or fines. Rolls crushers are effectively used in minerals crushing where the ores are not too abrasive and they are also used in smaller scale production mining of more abrasive metal ores, such as gold. Coal is probably the largest user of roll crushers, currently, though. Coal plants will use roll crushers, either single roll or double roll, as primary crushers, reducing the ROM coal. Usually, these crushers will have teeth or raised forms on the face of the roll. (Roll crushers used for minerals and metal ores have smooth faced rolls.)

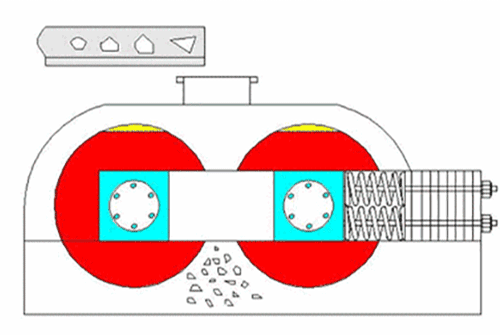

Working principle of Double roll crusher

A roll crusher crushes using compression, with two rolls rotating about a shaft, towards the gap between the rolls. The gap between the rolls is set to the size of product desired, with the realization that the largest feed particle can only be 4 times the gap dimension. The particles are drawn into the gap between the rolls by their rotating motion and a friction angle formed between the rolls and the particle, called the nip angle. The two rolls force the particle between their rotating surface into the ever smaller gap area, and it fractures from the compressive forces presented by the rotating rolls.

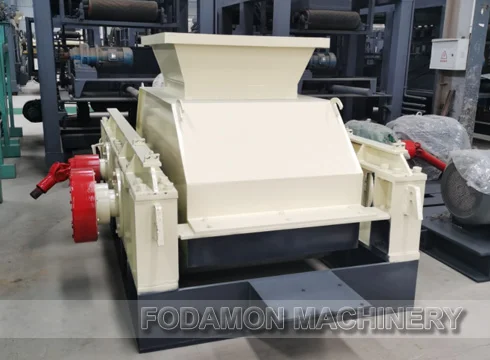

double roll crusher fodamon machinery
Double roll crusher is mainly used for the crushing of medium or lower-hardness mines and rocks with medium or lower rigidity in mine selection, chemicals, cement and building materials industrial production.



Specification

Technical data of Double smooth roll crusher

Model

Feeding  size
(mm)

Discharge size
(mm)

Capacity
(t/h)

Power
(kw)

Weight
(t)

Overall size
(LxWxH)(mm)

2PG400×250

<35

≤2-8

2-10

2×5.5

1.3

2150×980×800

2PG400×400

<35

≤2-8

5-12

2×7.5

2.3

2360×1100×800

2PG610×400

<65

≤2-20

5-20

2×15

3.9

3510×1420×1030

2PG750×500

<75

≤2-25

10-40

2×18.5

9.5

4210×1630×1260

2PG800×600

<80

≤2-25

12-45

2×22

10.8

4505×1780×1320

2PG1000×700

<100

≤3-30

20-65

2×30

14.9

5310×2175×1595

2PG1200×800

<120

≤3-35

35-80

2×37

25.5

6290×2270×1870

2PG1500×800

<130

≤3-45

50-120

2×75

33.7

7460×2410×2290

2PG1600×1000

<150

≤3-50

60-140

2×90

41.2

8220×2680×2475


Technical data of Double teeth roll crusher

Model

Max. Feeding size (mm)

Discharge size
(mm)

Capacity
(t/h)

Power(kw)

Weight
(kg)

Overall size
(L×W×H)(mm)

2PGC400×250

80-100

10-50

7-15

5.5×2

1300

2400×950×650

2PGC400×400

180-260

10-50

15-30

7.5×2

1800

2400×1250×650

2PGC450×500

300-500

15-100

30-60

7.5×2

3800

2660×1900×826

2PGC600×750

300-600

20-120

60-100

11×2

7200

2780×3065×1310

2PGC600×900

300-600

30-150

80-120

18.5×2

7800

4500×1900×1350

2PGC900×900

600-900

30-200

150-200

22×2

13500

4100×2200×1550

2PGC900×1200

700-950

30-200

180-220

37×2

18800

5823×2420×1635

2PGC1200×1500

800-1050

30-200

200-300

55×2

52000

7010×4500×2050

Note: This is just reference. Please contact us to get price and details.
