Bucket Elevator

Bucket Elevator

Applied Materials:

Limestone, calcite, calcium carbonate, dolomite, barite, talc, gypsum, diabase, quartzite, bentonite, etc.


Applications:

Crushing of calcium carbonate, processing of gypsum powder, desulfurization of power plants, milling of non-metallic minerals and preparation of pulverized coal.

Description

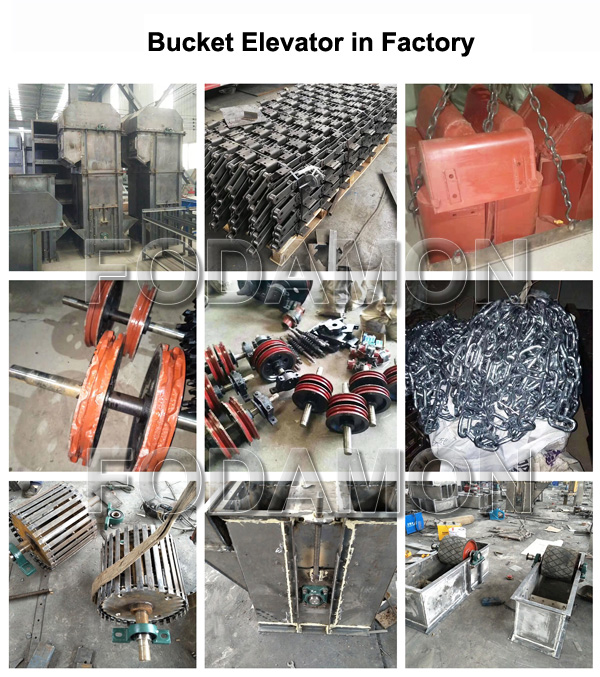

Introduction of Bucket Elevator

Bucket elevator is divided into belt bucket hoist, chain bucket hoist, plate chain bucket hoist and wire rope core belt bucket hoist according to the material characteristics and the use environment. Bucket hoist is suitable for vertical conveying of powder, granular and small pieces of materials. It has the characteristics of simple structure, stable operation, high lifting height and long service life. It is widely used in building materials, chemical industry, coal, power, port and other industries. The bucket elevator has large conveying capacity and high prompting height. It is suitable for elevating from low to high. After feeding materials into the hopper through the shaking table, the machine automatically runs continuously upward, and the conveying speed can be adjusted according to the conveying capacity, and the elevating height can be selected as needed.


Working Principle

When working, the bucket elevator hopper scoops up the required materials from the storage room below, lifts the conveyor belt or chain to the top, turns down after bypassing the top wheel, and pours the materials into the receiving tank. The belt of the belt-driven bucket elevator is usually rubber belt, which is mounted on the lower or upper driving drum and the lower reversing drum. The chain-driven bucket elevator is generally equipped with two parallel transmission chains, with a pair of transmission sprockets on or below, and a pair of directional sprockets on or above. Bucket elevator is generally equipped with an organic shell to prevent dust from flying in the bucket elevator and reduce environmental pollution.

Technical Data



Ring Chain Bucket Elevator

Specification

Max.lifting height
(m)

Conveying capacity
(m³/h)

Max.size
(mm)

Pitch of buckets
(mm)

Motor prower
(kw)

TH160

25

7-12

15-20

400

3-4

TH200

28

8-15

20-30

500

3-5.5

TH250

30

10-25

25-35

500

4-7.5

TH300

30

25-35

30-40

500

5.5-11

TH315

40

30-40

35-45

512

5.5-15

TH400

40

45-60

40-55

512

11-22

TH500

40

65-80

50-60

512

15-30

TH630

40

100-120

60-65

688

18.5-37

TH800

40

130-150

65-75

920

22-45



Wire Belt Bucket Elevator

Specification

Max. lifting height
(m)

Conveying capacity
(m³/h)

Max. size
(mm)

Bucket Volume
(L)

Motor power
(kw)

TDG160

80

34

0-20

2.6

2.2-11

TDG200

80

45

0-25

4.1

3-15

TDG250

80

71

0-30

6.5

5.5-22

TDG315

80

101

0-35

10

7.5-30

TDG400

80

158

0-40

16

15-45

TDG500

80

218

0-45

25

18.5-55

TDG630

80

345

0-50

40

30-90

TDG800

80

491

0-50

61

45-132



Plate Chain Bucket Elevator

Specification

Max. lifting height
(m)

Max. lifting capacity
(m³/h)

 Percentage allowed
(%)

Pitch
(mm)

Motor power
(kw)

10

25

50

75

100

Max. size(mm)

NE15

40

16

65

50

40

30

25

101.66

1.5-4

NE30

59

31

90

75

58

47

40

152.4

2.2-7.5

NE50

62

60

90

75

58

47

40

152.4

3-15

NE100

58

110

130

105

80

65

55

200

7.5-30

NE150

65

170

130

105

80

65

55

200

11-37

NE200

73

220

170

135

100

85

70

250

18.5-75

NE300

61

320

170

135

100

85

70

250

22-75

NE400

47

420

205

165

125

105

90

300

45-90

NE500

58

500

240

190

145

120

100

300

45-132

 Note: This is just reference. Please contact us to get price and details.
