Trommel Screen

Trommel Screen

Applied Materials:

 Iron ore, Sand, Stone, Cement clinker, Copper ore, Pyrrhotite, Hematite, Limonite, etc.


Applications:

Cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal dressings, and glass ceramics.

Description

Introduction of Trommel screen

Trommel screen is often used for grading of powdery, granules and lumps materials, the screening effect is good, the sieve holes are not easy to block, the operation is stable, the noise is low, the structure is simple, the maintenance is convenient, the screening cylinder can be closed, the dust is easy to be closed, and the whole machine has high reliability. Less one-time investment. The special screen is used for high screening efficiency and long service life.

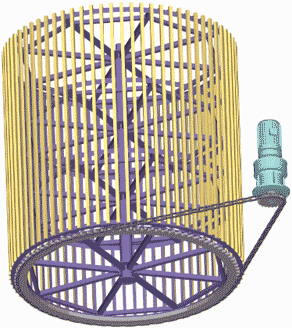

Working Principle

The motor is coupled to the drum unit via a coupling via a reducer to drive the drum unit to rotate about its axis. After the material enters the roller device, due to the tilting and rotation of the roller device, the material on the sieve surface is turned over and rolled, so that the qualified material (the product under the sieve) is discharged through the screen of the outer circle of the roller, and the unqualified material (the product on the sieve) ) is discharged through the end of the drum. Due to the turning and rolling of the material in the drum, the material stuck in the screen hole can be ejected to prevent the screen hole from being clogged. The principle structure of the drum sander, the drum screener and the drum screen is almost the same, and there is a difference in people's understanding and calling.


Technical Data



Model

Capacity(m³/h)

Power
(kw)

Sieve hole(2mm)

Sieve hole(30mm)

FTS1230

12

100

5.5

FTS1240

14

120

5.5

FTS1250

15

140

5.5

FTS1530

18

150

5.5

FTS1540

18

150

7.5

FTS1550

20

180

11

FTS1560

22

200

11

FTS2040

25

250

15

FTS2050

30

300

15

FTS2060

35

350

18.5

 Note: This is just reference. Please contact us to get price and details.
