Mineral Mixer

Mineral Mixer

Applied Materials:

Copper ore, pyrrhotite, hematite, limonite, molybdenum ore, gold ore, iron ore, etc.


Applications:

Production industries such as cement, silicate products, new building materials, refractory materials, fertilizers, black and non-ferrous metal beneficiation, and glass ceramics.

Description

Mineral mixer (Conditioning tank) is mainly used to mix slurry before flotation in the beneficiation process. It can mix drug and slurry completely. It is suitable to mix slurry with density smaller than 30 % (weight ratio) and size smaller than 1mm. V-belt of motor drives impeller to mix drug and slurry completely. This machine can increase reaction time and strengthen reaction quality of the drug. The mixing bucket includes forced mixing bucket, single horizontal axis mixing bucket, double horizontal axis mixing bucket and so on.


Working principle

The mixing bucket is composed of motor, impeller, stator, bearing and other components. The mixing operation is carried out by using the flat bottom drum radiation circulation spiral impeller mechanical mixing method. When the mixing tank is working, the motor pulls the triangle belt drive device to drive the impeller to rotate. Under the constant speed mixing of the impeller, the slurry and the agent can fully mix with each other, increase the reaction time of the agent to the slurry, strengthen the reaction quality of the drug, so that the material can be fully stirred and mixed, and make necessary preparation for the next stage of the flotation machine production.

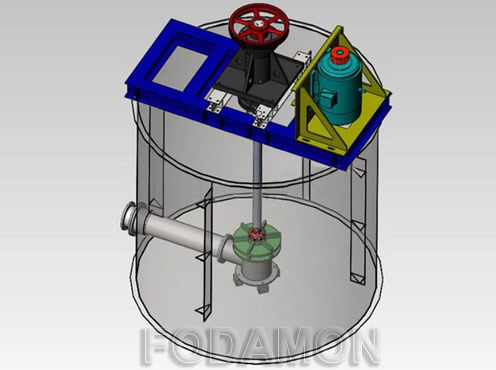

Structure of Mineral Mixing Bucket




Mineral mixer technical parameter

Category

 Model

Dimensions

Effective
cubage
(m³)

Rotate
speed(r/min)

Power
(kw)

Dimensions
(LxWxH) (mm)

Weight
(kg)

Diameter
(mm)

Height
(mm)

Agitating tank

XB-10x10

1000

1000

0.58

390

1.5

1130x1130x1521

1050

XB-12x12

1200

1200

1.18

390

2.2

1130x1330x1721

1160

XB-15x15

1500

1500

2.2

280

3.0

1750x1640x2190

1270

XB-20x20

2000

2000

5.6

210

5.5

2380x2160x2850

1700

XB-25x25

2500

2500

11.2

190

7.5

2990x2720x3540

3500

XB-30x30

3000

3000

19

140

18.5

4030x3270x3010

5200

XB-35x35

3500

3500

29

230

30

3920x3740x4970

6630

XB-40x40

4000

4000

45

210

37

4520x4320x5570

7830



Lifting type

XBT-10x15

1000

1500

1

510

2.2

1130x1130x2070

1250

XBT-15x20

1500

2000

2.9

400

4

1636x1768x2785

1677

XBT-20x20

2000

2000

5.6

312

11

2180x2220x3015

3100







High-efficiency
leaching tank

XF-20x20

2000

2000

7.07

82.5

1.5

2032x2032x3595

2400

XF-25x30

2500

3000

13.5

57.6

2.2

2532x2532x4152

3670

XF-30x30

3000

3000

22.97

50.0

2.2

3180x3180x4673

5340

XF-35x40

3500

4000

35.6

41.0

4.0

3685x3685x5314

7140

XF-40x45

4000

4500

52.78

33.5

4.0

4185x4185x5814

9300

XF-45x50

4500

5000

74.75

33.5

5.5

4685x4685x6466

10500

XF-50x56

5000

5600

102.1

30.6

5.5

5185x5185x6975

12300

XF-55x60

5500

6000

135.4

24.4

7.5

5670x5670x7569

13500

Note:This is just reference. Please contact us to get suitable solution and competitive price.
