Jaw Crusher
Applied Materials:

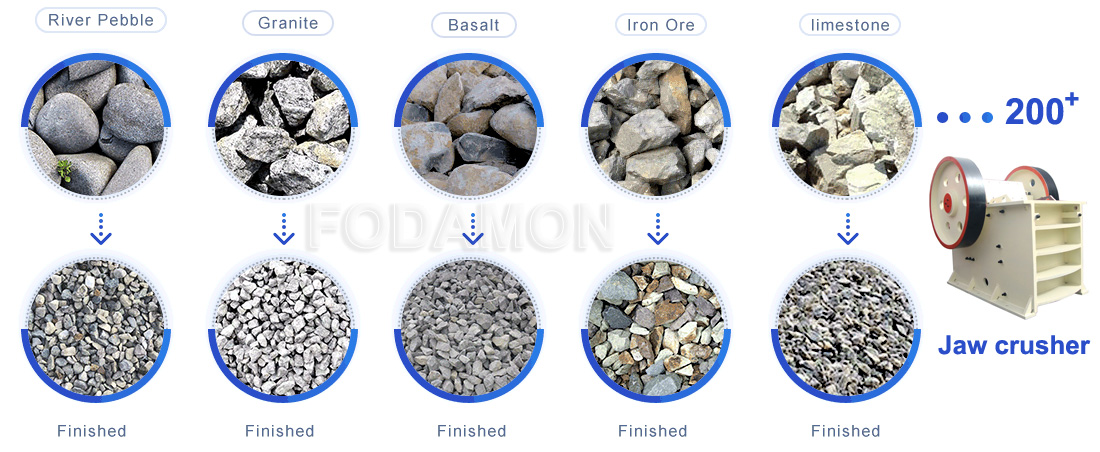

Pebbles, Granite, Basalt, Limestone, Quartzite, Diabase, River stone, Gravel, Minerals, Construction Waste, Iron Ore, Gold Mine, etc.
Applications:

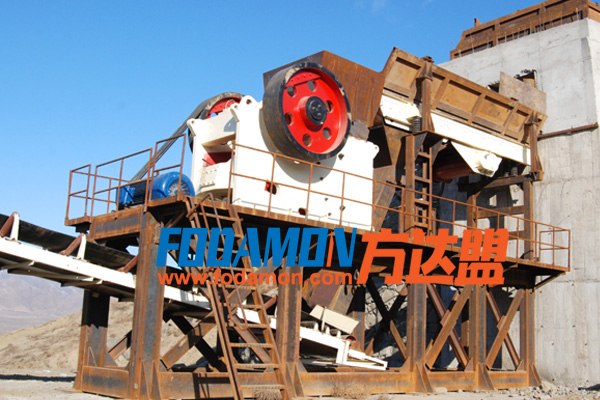

Sand and gravel field, Mining, Coal mining, Concrete mixing station, Dry powder mortar, Power plant desulfurization, Quartz sand, etc.
If you want to learn more about our crushing equipment, Leave a Message!

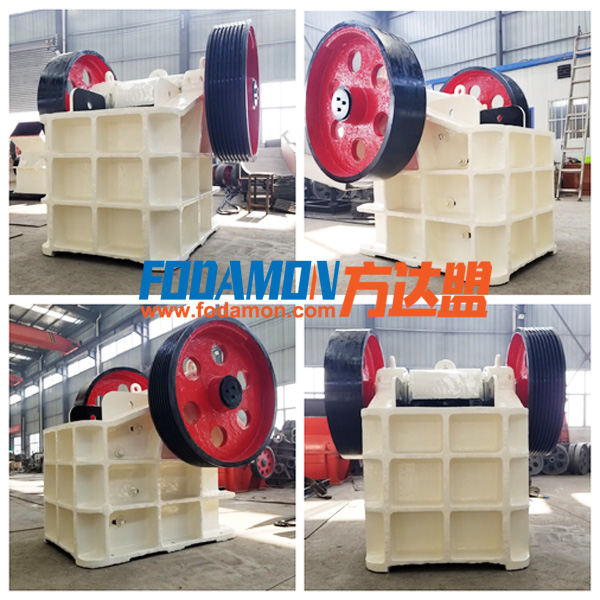

Introduction of Jaw Crusher
Crusher is an indispensable equipment in the process of crushing ore, of which jaw crusher is particularly important. After continuous innovation and process improvement, the jaw crusher has greatly improved its structure and technology. It has the advantages of simple structure, reliable work, easy operation, convenient maintenance and low cost. The jaw crusher is mainly used for crushing medium-sized particles of various ores and bulk materials, and is widely used in mining, smelting, building materials, highway, railway, water conservancy and chemical industries. Quartzite, bluestone, river pebble, cobblestone, limestone, iron ore and other stone materials can be processed and broken.
Features of Jaw Crusher

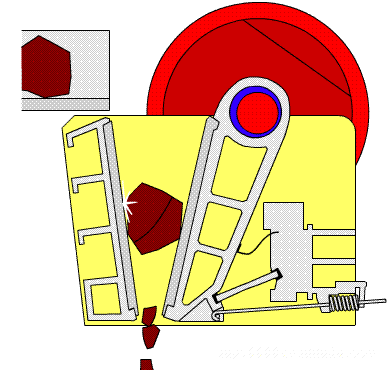

1. Deep “V” crushing chamber, less crushing blind zone, increased feed capacity and output.
2. Energy saving of equipment is good, energy saving of single machine is 15%-30%, power consumption of 1 ton of limestone is reduced by 1-2 KWh/t,
annual electricity cost can be saved by 14285.71 USD around, system energy saving is doubled, and operation cost is low.
3. Gasket-type adjusting device for discharging inlet and outlet has wide adjusting range, convenience and reliability, and strong flexibility of equipment, which can meet the requirements of different users.
If you want to learn more about our crushing equipment, Leave a Message!

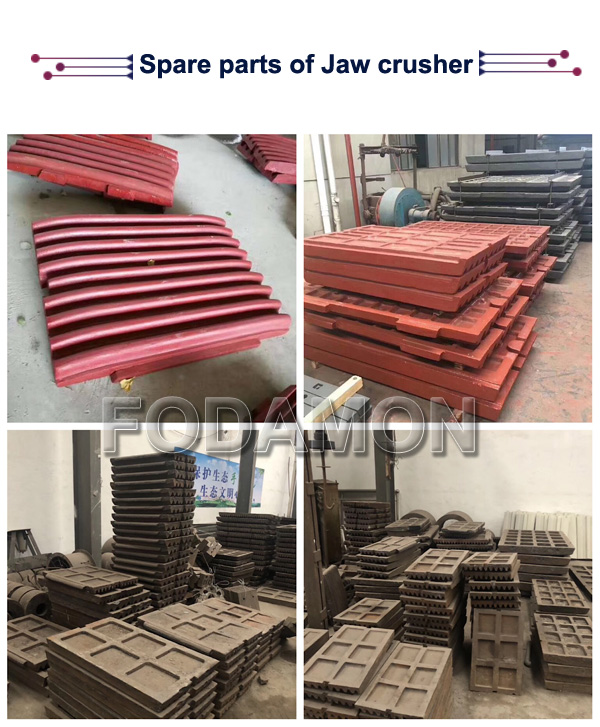

Wearing parts service life of Jaw crusher
The service life of the vulnerable parts of jaw crusher is of great concern to many customers. Fodamon manufacturer takes the user’s demand as the starting point of production, pursues the quality, and makes great efforts in the manufacture of jaw crusher. The wear-resistant high manganese steel is used in the movable and fixed lining plates. For more materials and service life, please refer to the table below for your reference. (Note: The actual service life depends on the individual)
| Wear parts name | Material | General Term of Use (Month) |
Minimum reserve |
| Movable jaw plate | High manganese steel | 4-10 | 2 set |
| Fixed jaw plate | High manganese steel | 4-10 | 2 set |
| Elbow plate | Cast iron | 2-8 | 2 set |
| Main bearing bush | Cast Babbitt Alloy | 24-30 | 1 set |
| Eccentric bearing liner | Cast Babbitt Alloy | 36-42 | 1 set |
| Movable jaw spindle bearing bush | Bronze | 12-18 | 1 set |
| Tile spring | Spring steel | 6-12 | 2 pcs |
| Bearing | Bearing steel | 6-12 | 2 pcs |
| Spring tie rod | Carbon steel | 6-12 | 2 pcs |
| Shim | Carbon steel | 4-10 | 2 set |
If you want to learn more about our crushing equipment, Leave a Message!
Technical parameter of Jaw Crusher
|
Type |
Feed opening |
Max feeding size |
Adjusting range of discharge opening |
Capacity (t/h) |
Rotation speed of eccentric shaft |
Motor power |
Total weight |
Dimensions |
|
PE-150×250 |
150×250 |
125 |
10-40 |
1-3 |
250 |
5.5 |
0.6 |
720x660x850 |
|
PE-200×300 |
200×300 |
180 |
15-50 |
2-6 |
260 |
7.5 |
1 |
910x750x990 |
|
PE-200×350 |
200×350 |
180 |
18-70 |
3-10 |
260 |
11 |
1.3 |
1000x870x990 |
|
PE-250×400 |
250×400 |
210 |
20-60 |
5-20 |
300 |
15 |
2.8 |
1300x1090x1270 |
|
PE-400×600 |
400×600 |
340 |
40-100 |
16-60 |
275 |
30 |
7 |
1730x1730x1630 |
|
PE-500×750 |
500×750 |
425 |
50-100 |
40-110 |
275 |
55 |
12 |
1980x2080x1870 |
|
PE-600x900II |
600×900 |
500 |
65-160 |
50-180 |
250 |
55-75 |
17 |
2190x2206x2300 |
|
PE-600×900 |
600×900 |
500 |
75-200 |
60-200 |
250 |
75 |
20 |
2290x2290x2400 |
|
PE-750×1060 |
750×1060 |
630 |
80-140 |
115-330 |
250 |
110 |
29 |
2660x2430x 800 |
|
PE-870×1060 |
870×1060 |
660 |
200-260 |
290-336 |
250 |
110 |
31.5 |
2810x2430x2800 |
|
PE-900×1060 |
900×1060 |
685 |
230-290 |
160-400 |
250 |
110 |
33 |
2870x2420x2940 |
|
PE-900×1200 |
900×1200 |
750 |
95-165 |
220-450 |
200 |
110 |
52 |
3380x2870x3330 |
|
PE-1000×1200 |
1000×1200 |
850 |
195-265 |
315-500 |
200 |
110 |
55 |
3480x3876x3330 |
|
PE-1200×1500 |
1200×1500 |
1020 |
150-300 |
400-800 |
180 |
160 |
100.9 |
4200x3300x3500 |
|
PEX-150×750 |
150×750 |
120 |
18-48 |
8-25 |
320 |
15 |
3.8 |
1200x1530x1060 |
|
PEX-250×750 |
250×750 |
210 |
25-60 |
13-35 |
330 |
30 |
5.5 |
1380x1750x1540 |
|
PEX-250×1000 |
250×1000 |
210 |
25-60 |
16-52 |
330 |
37 |
7 |
1560x1950x1390 |
|
PEX-250×1200 |
250×1200 |
210 |
25-60 |
20-61 |
330 |
45 |
8.5 |
2140x1660x1500 |
|
PEX-300×1300 |
300×1300 |
250 |
20-90 |
16-105 |
300 |
75 |
11 |
2720x1950x1600 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
Technical parameter of C Series European Jaw Crusher
|
Model |
C80 |
C96 |
C100 |
C106 |
C110 |
C125 |
C140 |
C160 |
|
Feed opening (mm) |
800×510 |
930×580 |
1000×760 |
1060×700 |
1100×850 |
1250×950 |
1400×1070 |
1600×1200 |
|
Power (kw) |
75 |
75(90) |
110(90) |
110 |
132(160) |
160(132) |
200(160) |
250(200) |
|
Rotate speed (rpm) |
350 |
300 |
260 |
280 |
230 |
220 |
220 |
220 |
|
Length of fixed jaw plate (mm) |
1100 |
1380 |
1600 |
1450 |
1800 |
2000 |
2100 |
2500 |
|
Weight (kg) |
7520 |
17300 |
20100 |
21500 |
25060 |
36700 |
45300 |
68600 |
Note: This is just reference. Please contact us to get suitable solution and competitive price.
