Composite Crusher
Applied Materials:
Limestone, quartz, granite, dolomite, iron ore, coal gangue, river pebbles, weathered rock, soft rock, etc.
Applications:
Mining, metallurgy, refractory, cement, coal, glass, ceramics, electricity and other industries.
If you want to learn more about our crushing equipment, Leave a Message!
Composite crusher, also known as vertical compound crusher, is a kind of crushing machine which combining the advantages of impact crushers and hammer crushers. It has the characteristics of high reduction ratio, low power consumption, stable performance and easy maintenance, etc.
Heavy-duty composite crusher, also known as good Sand making machine, is a new type of sand making machine developed by our company in 2015 according to the crushing principle of three crushing equipments: counterattack crushing, impact crushing and cone crushing. Its characteristic is that it can turn three-stage crushing into two-stage crushing, save the investment cost of customers, and make use of the new crushing principle. Different diameter of rotor is used to achieve different linear velocity for broken materials with different particle sizes from large to small, which makes the materials receive different counterattack strength. Whether in terms of power consumption or actual output, it is much higher than the existing crushing sand making equipment in the market. The sand machine is widely used in fine crushing of granite, basalt, River pebble, iron ore, cement clinker and other minerals. The major feature is that the discharging granularity can be controlled by frequency conversion to achieve the desired discharging granularity. It is an important equipment for producing high quality stone in the industries of high-grade highway, railway, cement, metallurgy, mechanized artificial sand making machine and so on.
Applications of Composite Crusher
Our compound crusher is mainly used to crush cement raw materials and cement clinker. It can also be applied to crush iron ore, sandstone, plaster, coal gangue, lump coal, limestone, dolomite, granite, basalt and other stones. Composite crusher is a kind of no screen, adjustable fine crushing machine. It is optimal designed on the basis of advanced fine crushing technology both at home and abroad. It is mainly adapted to medium-sized raw materials and clinkers , at the same time can also be used for fine-crush dolomite, coke precious stones, lead-zinc, serpentine, blast furnace slag, coal gangue , phosphate rock materials with medium hardness , especially suitable for hard limestone, dolomite, granite, basalt artificially build sand or highway pavement stone processing.

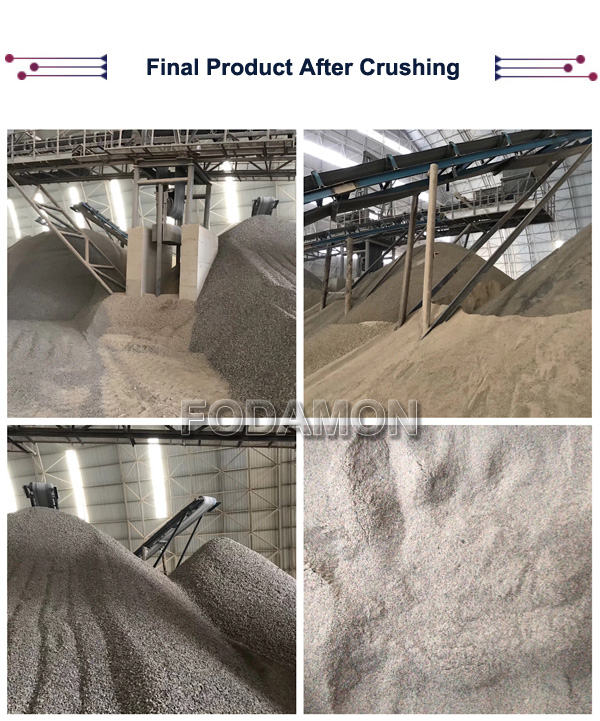

The granularity of the finished product of the heavy-duty composite crusher can reach 120 meshes. It can be used in many fields, such as mixing station sand making, dry silt mortar sand making, limestone sand making, River pebble sand making, quartz sand making, granite sand making, etc. The finished product is cubic and can provide high-quality products for expressway, high-speed railway, bridge, building and other fields. Sandstone aggregate.
If you want to learn more about our crushing equipment, Leave a Message!
If you want to learn more about our crushing equipment, Leave a Message!
Technical parameter of Composite Crusher
|
Model |
Feeding size |
Material-insize |
Trening capacity |
Motor power |
Maine shaft speed |
Overall dimension |
|
PEL-800 |
100 |
0-5 |
10-20 |
22 |
934 |
2100x1200x1700 |
|
PEL-1000 |
120 |
0-5 |
20-40 |
45-55 |
769 |
2600x1400x1900 |
|
PEL-1250 |
150 |
0-5 |
40-70 |
75 |
530 |
2800x1600x2100 |
|
PEL-1500 |
180 |
0-5 |
70-100 |
90-110 |
495 |
3100x1900x2200 |
|
PEL-1750 |
200 |
0-5 |
130-190 |
132-160 |
424 |
3710x2360x2390 |
|
PEL-2000 |
220 |
0-5 |
200-260 |
185 |
370 |
4100x2660x2620 |
Note: This is just reference. Please contact us to get suitable solution and competitive price
