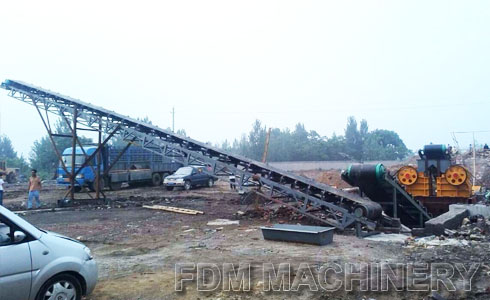

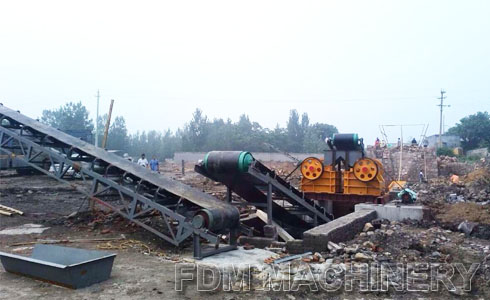

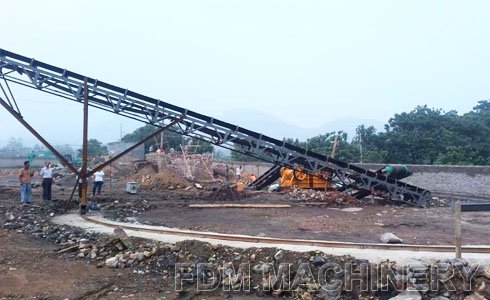

Stone crushing line Overview
50T/H-80T/H Stone crushing plant is used to crush stone with less than 425mm,such as hard limestone,granite,basalt,pebble. Product with various sizes can be made according to customers’special requirements in hydroelectric station,building materials,highway,railway,urban construction,etc. Impact crusher can be replaced by cone crusher according to customers’requirement or hardness of stone.
Note: Equipment configuration can be adjusted as per different materials, sizes and requirements.
| No. | Equipment | Model | Motor (KW) | Number |
| Hopper | LC3000X4000 | — | 1 | |
| I | Vibrating Feeder | GZD900x3800 | 6 | 1 |
| II | Jaw Crusher | PE500x750 | 55 | 1 |
| III | Impact Crusher | PF1010 | 75 | 1 |
| Ⅳ | Vribrating Screen | 3YK1548 | 15 | 1 |
| Belt | ||||
| No. | Name | Length (m) | Motor (KW) | Number |
| B1 | B500 | 15 | 5.5 | 1 |
| B2 | B650 | 15 | 5.5 | 1 |
| B3 | B650 | 21 | 5.5 | 1 |
| B4 | B500 | 22 | 5.5 | 1 |
| B5 | B500 | 15 | 5.5 | 3 |
Note: This is just as reference. Please contact us to get suitable solution and price.
